Запчасти Case IH 8830 (9-032) - HAY CONDITIONER ADAPTER KIT, TO BE USED WITH HAY CONDITIONER SERIAL NUMBER HC00300 THRU HC00334 (58) - ATTACHMENTS/HEADERS

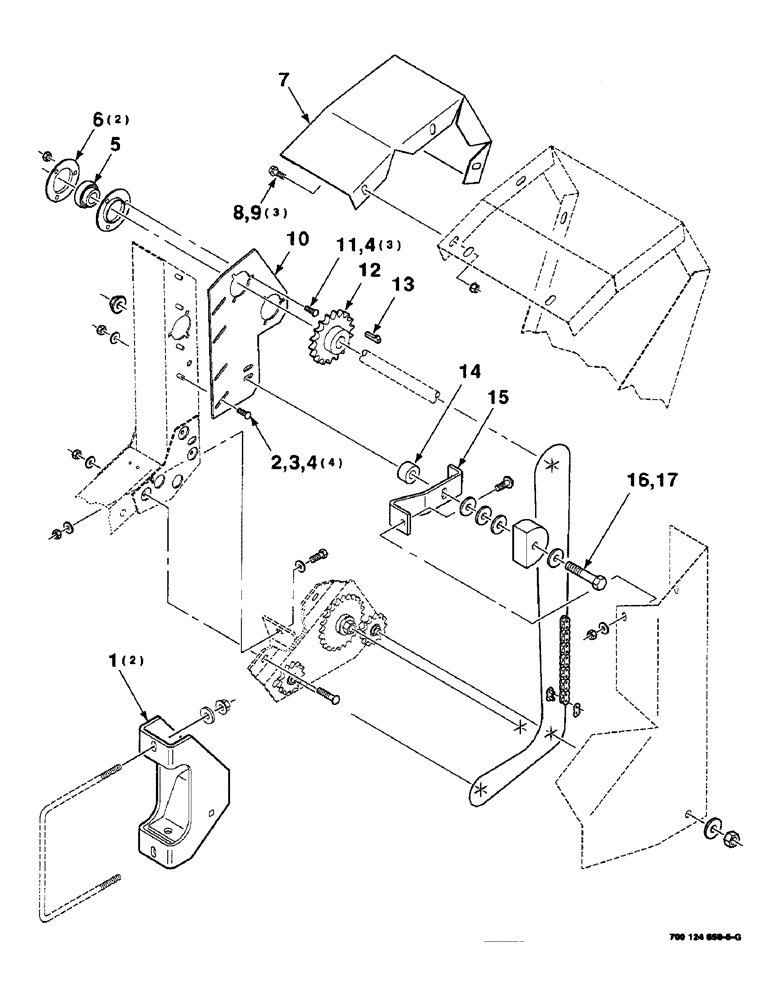

Схема запчастей Case IH 8830 - (9-032) - HAY CONDITIONER ADAPTER KIT, TO BE USED WITH HAY CONDITIONER SERIAL NUMBER HC00300 THRU HC00334 (58) - ATTACHMENTS/HEADERS
4
7
14
2
5
12
15
13
9
3
1
11
16
4
17
6
10
8

Артикул

Название

Примечание

Количество

HK60630

HAY CONDITIONER ADAPTER KIT COMPLETE

1шт.

1

700124662

SUPPORT

WA

2шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

4

425-106

NUT,3/8"-16, Cl 5

7шт.

5

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- spherical

1шт.

6

617863R1

FLANGED BEARING

- bearing

2шт.

7

700124664

SHIELD

1шт.

8

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

3шт.

10

700124660

PLATE

- mounting

1шт.

11

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

3шт.

12

700124663

SPROCKET ASSY.

SPROCKET

1шт.

13

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 X 1-1/2 GIB KEY

1шт.

14

6833081

BUSHING

SPACER

1шт.

15

700124659

STRAP

- mounting

1шт.

16

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

17

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

Выбрано товаров: 18
