Запчасти Case IH 8830 (9-030) - HAY CONDITIONER FLOTATION SPRING ASSEMBLY (58) - ATTACHMENTS/HEADERS

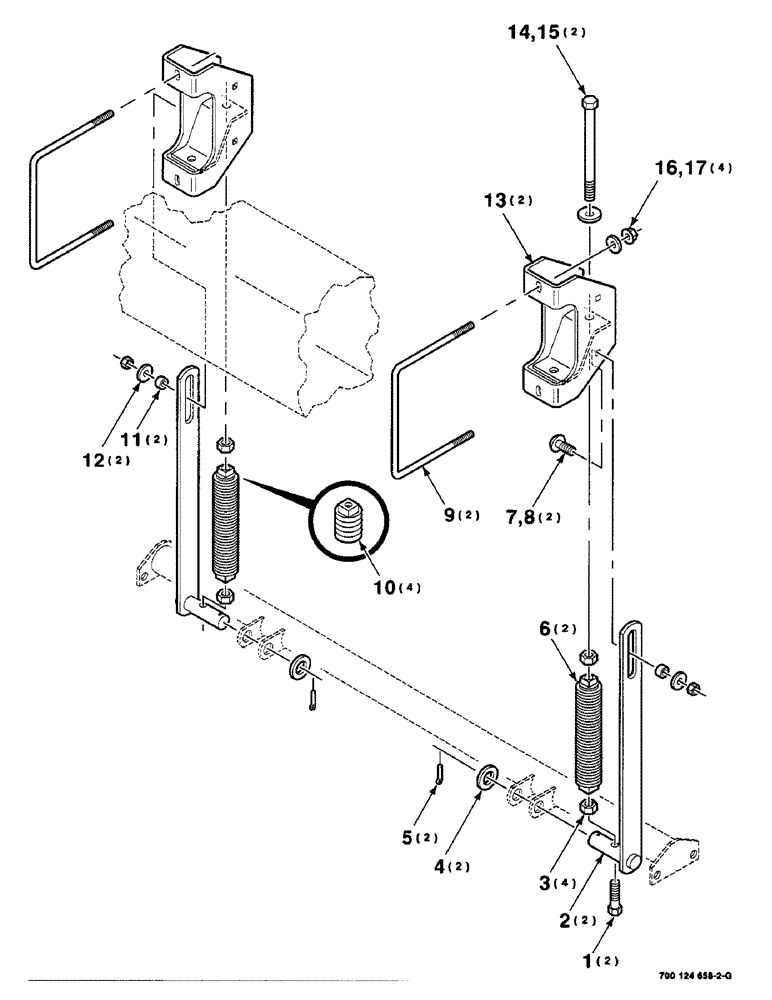

Схема запчастей Case IH 8830 - (9-030) - HAY CONDITIONER FLOTATION SPRING ASSEMBLY (58) - ATTACHMENTS/HEADERS
9
7
8
12
14
1
11
16
15
10
4
2
17
5
13
3
6

Артикул

Название

Примечание

Количество

1

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

2

700121795

STRAP

WA - link

2шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

4

495-21106

WASHER,1"

1 HARDENED PLAIN WASHER

2шт.

5

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

6

6171060

SPRING,11.25" L

ASSEMBLY (Includes item 10)

2шт.

7

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

700121799

CLAMP

U-CLAMP

2шт.

10

6146542

SPRING NUT

PLUG - spring

4шт.

11

6255350

SPACER

2шт.

12

6178628

WASHER

2шт.

13

700121787

SUPPORT

WA

2шт.

14

113-469

BOLT,Hex, 1/2" - 13 x 5", Gr 5, Full Thd

2шт.

15

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

16

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

17

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

Выбрано товаров: 17
