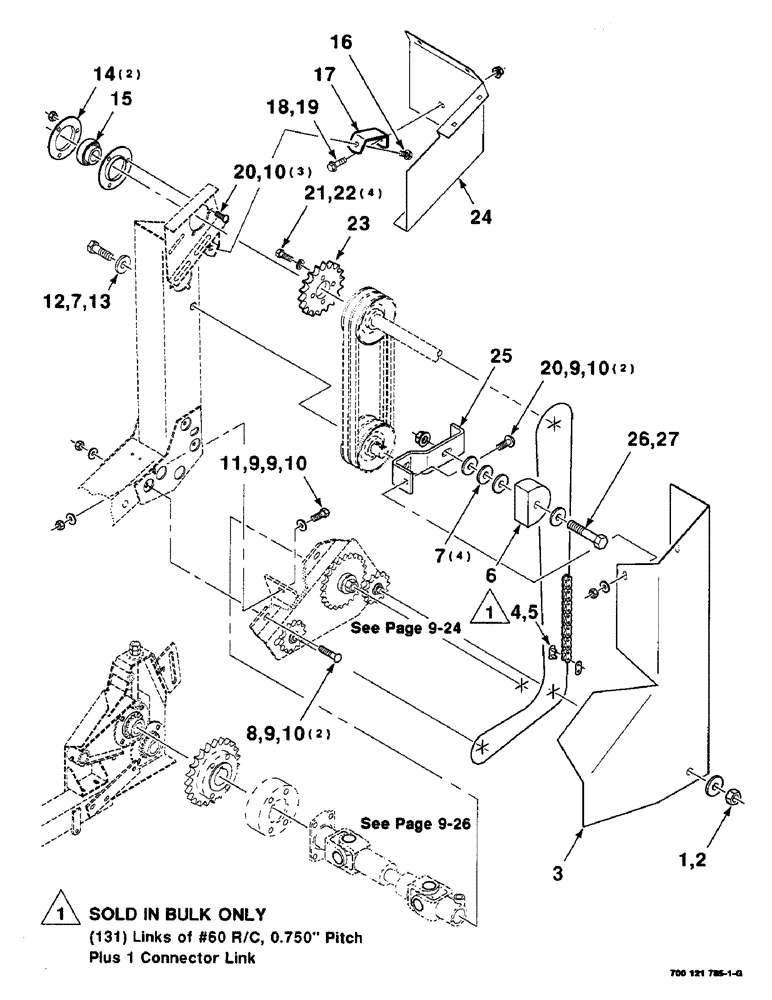

Запчасти Case IH 8830 (9-022) - HAY CONDITIONER PRIMARY DRIVE AND SHIELDS ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

425-1010

NUT,5/8"-11, G5

1шт.

2

495-21069

WASHER,5/8"

5/8 WIDE PLAIN WASHER

1шт.

3

700121791

SHIELD

1шт.

4

7086002

CHAIN (AG)

CHAIN - roller, #60 (10 Foot bulk)

1шт.

5

241-1416

LINK

- connector, #60 R/C

1шт.

6

760728

BLOCK ASSY.

BLOCK - idler, chain

1шт.

7

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

5шт.

8

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

6шт.

10

425-106

NUT,3/8"-16, Cl 5

8шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

12

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

14

617863R1

FLANGED BEARING

- bearing

2шт.

15

710004

PTO SHAFT

- spherical

1шт.

16

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

17

700121807

SUPPORT

1шт.

18

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

20

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

5шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

22

492-11038

LOCK WASHER,3/8"

4шт.

23

700120825

SPROCKET ASSY.

SPROCKET WA - 60A18 tooth

1шт.

24

700121792

SHIELD

1шт.

25

700121790

STRAP

- mounting

1шт.

26

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

1шт.

27

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.
