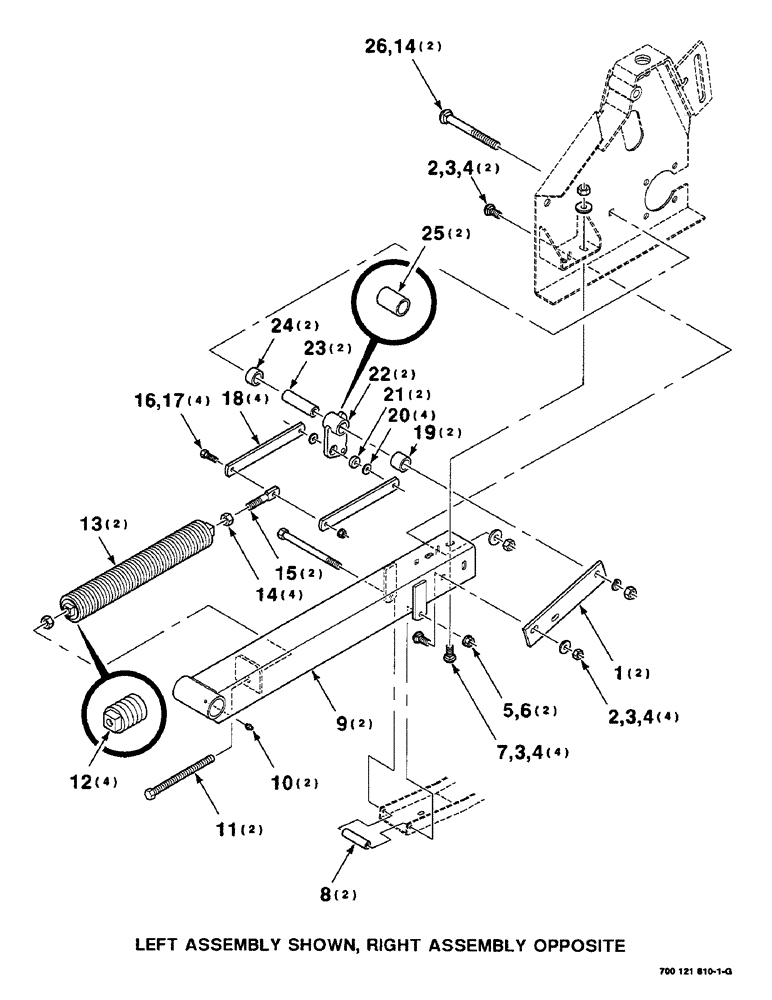

Запчасти Case IH 8830 (9-020) - HAY CONDITIONER SPRING ASSEMBLY, LEFT AND RIGHT (58) - ATTACHMENTS/HEADERS

1

700121837

STRAP

2шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

10шт.

4

425-106

NUT,3/8"-16, Cl 5

10шт.

5

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8-16 X 4-1/2 C

2шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

7

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

4шт.

8

700121843

SPACER

2шт.

9

700121823

ARM

WA

2шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

11

873513

BOLT,Hex, 1/2" - 13 x 6", Gr 5, Full Thd

1/2-13 X 6 FTC

2шт.

12

287805

PLUG

- spring

4шт.

13

6822894

SPRING

ASSEMBLY (Includes item 12)

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

15

700119868

STUD

2шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

18

700121833

LINK

4шт.

19

700121836

SPACER

- outer

2шт.

20

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

21

700706189

BALL BEARING,8mm ID x 22mm OD x 7mm W

BEARING

2шт.

22

700127417

CAM

WA (Includes item 25)

2шт.

23

700121838

BUSHING

2шт.

24

700121839

SPACER

- inner

2шт.

25

740803

BUSHING

BEARING - sleeve

2шт.

26

433-872

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4 1/2", Gr 5

1/2-13 X 4-1/2 RHSNB

2шт.
