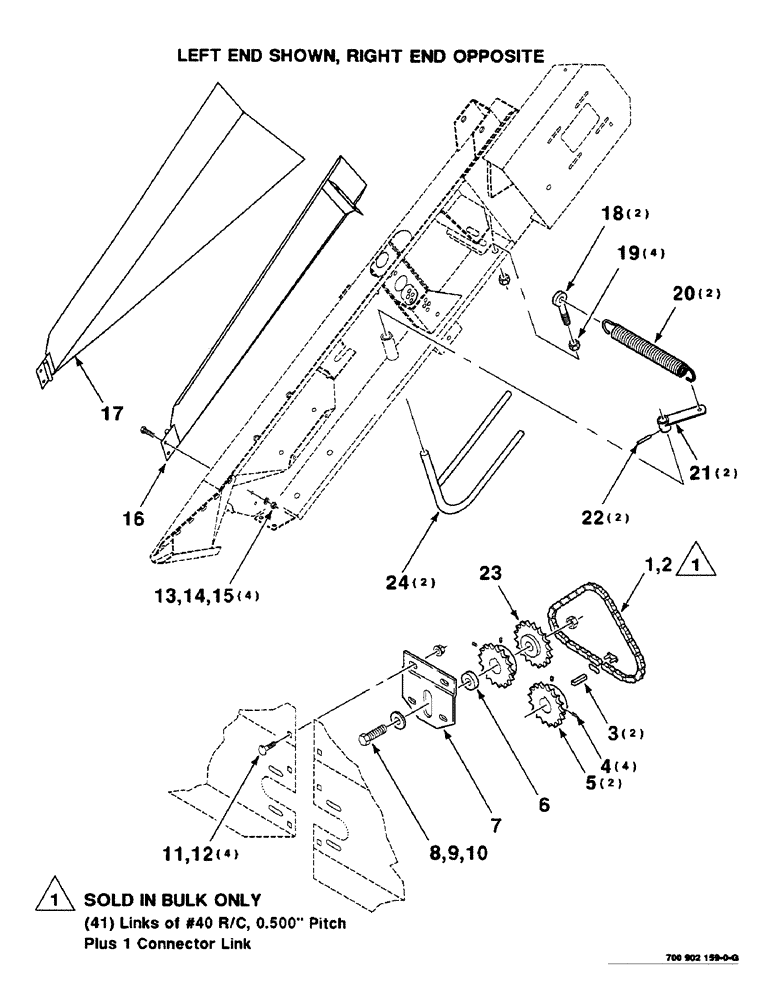

Запчасти Case IH 8830 (9-012) - END DELIVERY DEFLECTOR KIT, HK60566 END DELIVERY DEFLECTOR KIT COMPLETE, 21 FOOT ONLY (58) - ATTACHMENTS/HEADERS

HK60566

END DELIVERY DEFLECTOR KIT COMPLETE

1шт.

1

1790D

CHAIN (AG)

CHAIN - roller #40 (10 Foot bulk)

1шт.

2

241-1314

CHAIN LINK

LINK - connector, #40 R/C

1шт.

3

Q53

KEY,1/4" Sq x 1", Par

2шт.

4

483-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

5/16-18 X 3/8 CPHSSS

4шт.

5

6824775

SPROCKET ASSY.

SPROCKET - 40B17 tooth

2шт.

6

6156871

SPACER

1шт.

7

700119045

PLATE

- mounting, sprocket

1шт.

8

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

9

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

10

425-1010

NUT,5/8"-11, G5

1шт.

11

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

425-105

NUT,5/16"-18, G5

4шт.

16

700116355

DEFLECTOR

WA - left

1шт.

17

700118413

DEFLECTOR

WA - right

1шт.

18

443556

FITTING,3/8" - 16 x 2", Full Thd

3/8-16 EYE BOLT

2шт.

19

425-106

NUT,3/8"-16, Cl 5

4шт.

20

58859

SPRING

- extension

2шт.

21

700116349

ARM

- deflector

2шт.

22

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

23

47977

SPROCKET ASSY.

SPROCKET - idler, 18 tooth

1шт.

24

700116346

TUBE

WA

2шт.
