(7-4) - SICKLE HEAD GUARD ASSEMBLY

Запчасти Case IH 8830 (7-4) - SICKLE HEAD GUARD ASSEMBLY (58) - ATTACHMENTS/HEADERS

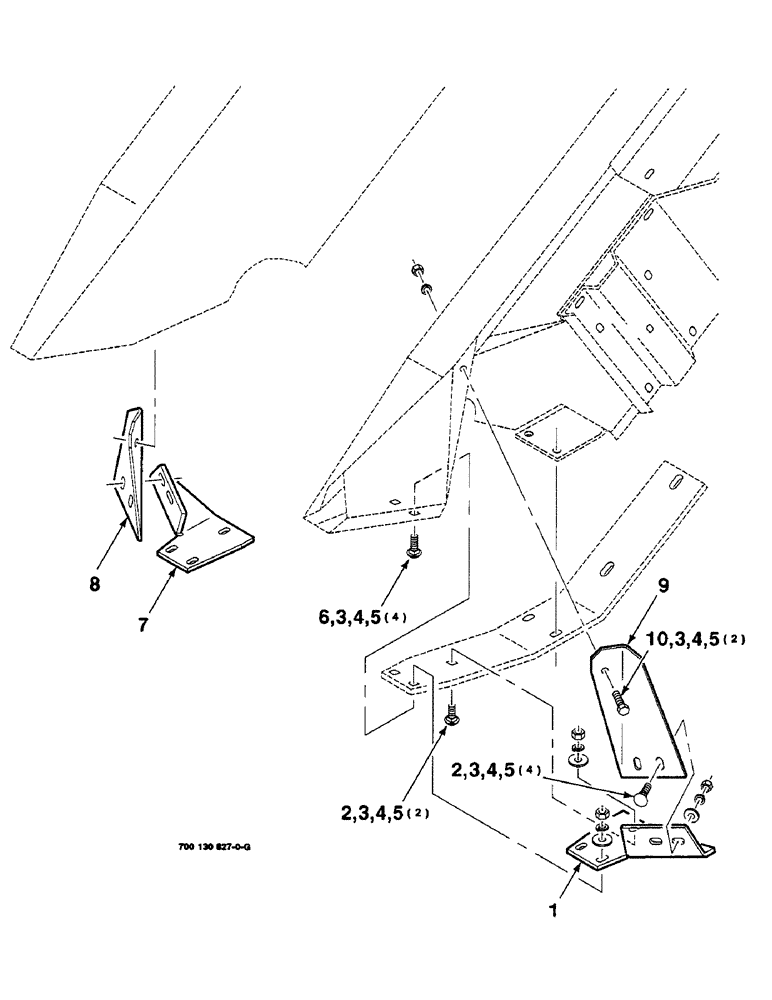

Схема запчастей Case IH 8830 - (7-4) - SICKLE HEAD GUARD ASSEMBLY (58) - ATTACHMENTS/HEADERS
5
8
5
5
7
3
3
4
5
9
2
3
4
4
10
1
6
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700127771

SHOE

- left

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

12шт.

4

492-11038

LOCK WASHER,3/8"

12шт.

5

425-106

NUT,3/8"-16, Cl 5

12шт.

6

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

7

700127772

SHOE

- right

1шт.

8

700127774

GUSSET

- shoe, right

1шт.

9

700127773

GUSSET

- shoe, left

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.
