Запчасти Case IH 8830 (6-18) - DRAPER FRAME ASSEMBLY, RIGHT, SERIAL NUMBER CFH0030455 AND LATER, 15 FOOT ONLY (58) - ATTACHMENTS/HEADERS

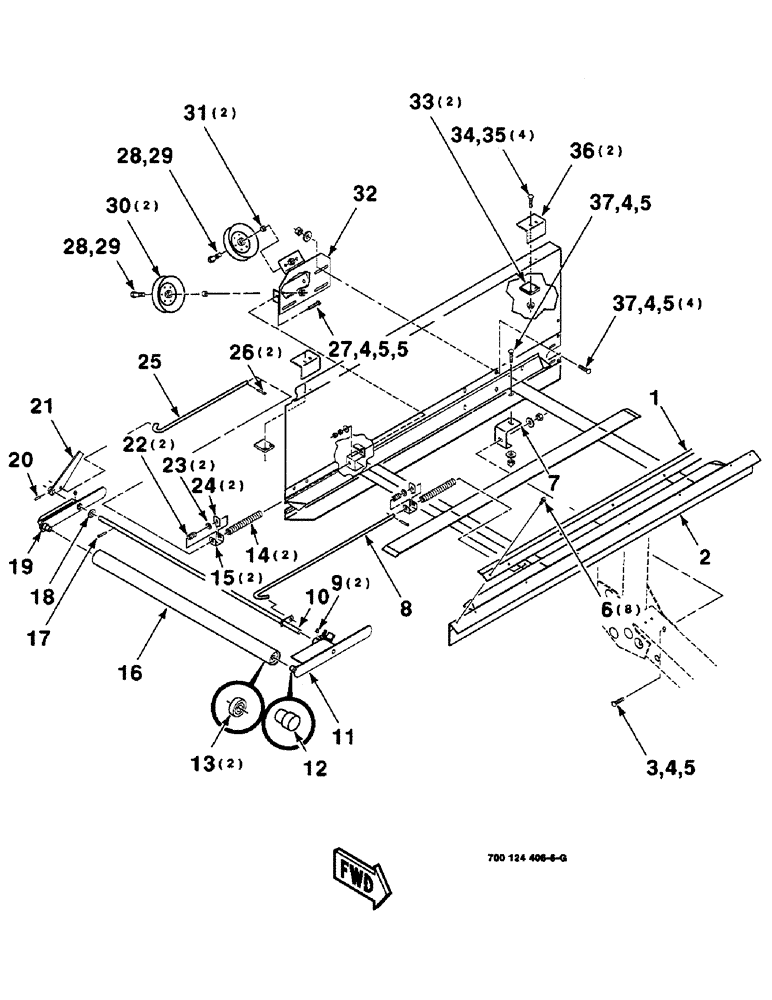

Схема запчастей Case IH 8830 - (6-18) - DRAPER FRAME ASSEMBLY, RIGHT, SERIAL NUMBER CFH0030455 AND LATER, 15 FOOT ONLY (58) - ATTACHMENTS/HEADERS
32
4
5
4
8
12
34
35
19
29
20
4
18
22
5
7
24
28
21
9
4
5
13
10
3
26
16
31
29
1
5
37
14
37
2
36
6
28
30
5
11
25
27
15
17
33
23

Артикул

Название

Примечание

Количество

1

700130824

ANGLE

1шт.

2

700124441

FRAME

WA - draper, right

1шт.

3

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

4

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

7шт.

5

425-106

NUT,3/8"-16, Cl 5

8шт.

6

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 X 1/2 HWHTCTS

8шт.

7

700119555

ANGLE

- draper stop

1шт.

8

700121230

ROD

1шт.

9

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.

10

700121254

SHAFT

WA

1шт.

11

700130789

ARM

WA - right, front (Includes item 12)

1шт.

12

700107939

SPINDLE

1шт.

13

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

BEARING

2шт.

14

700707580

SPRING

- compression

2шт.

15

700121227

CLIP

2шт.

16

700115392

ROLLER

WA (Includes item 13)

1шт.

17

62224

PIN, SPLIT (COTTER)

3/16 X 1 COTTER PIN

1шт.

18

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

19

700121222

ARM

WA-R, rear

1шт.

20

38-11216

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

21

700121317

ARM

WA - right

1шт.

22

700703267

COMPRESSION SPRING

SPRING - compression

2шт.

23

95-81100

WASHER,33/64" x 7/8" x .049"

1/2 X 18 GAUGE NRMB

2шт.

24

700121229

LOCK

TAB

2шт.

25

700124655

ROD

1шт.

26

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

27

7771660

SCREW,Hex, 3/8" - 16 x 4", Gr 5

3/8-16 X 4 FTC

1шт.

28

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

29

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

30

700709514

PULLEY

V-IDLER

2шт.

31

6500433

BUSHING

SPACER

2шт.

32

700124436

SUPPORT

WA - idler

1шт.

33

700115400

BAR PLATE

BEARING

2шт.

34

434-416

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

1/4-20 X 1 RHSNB

4шт.

35

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

36

700118524

BRACKET

ANGLE

2шт.

37

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

5шт.

Выбрано товаров: 37
