Запчасти Case IH 8830 (6-04) - DRAPER FRAME ASSEMBLY, LEFT, SERIAL NUMBER CFH0030159 THRU CFH0030454, 15 FOOT ONLY (58) - ATTACHMENTS/HEADERS

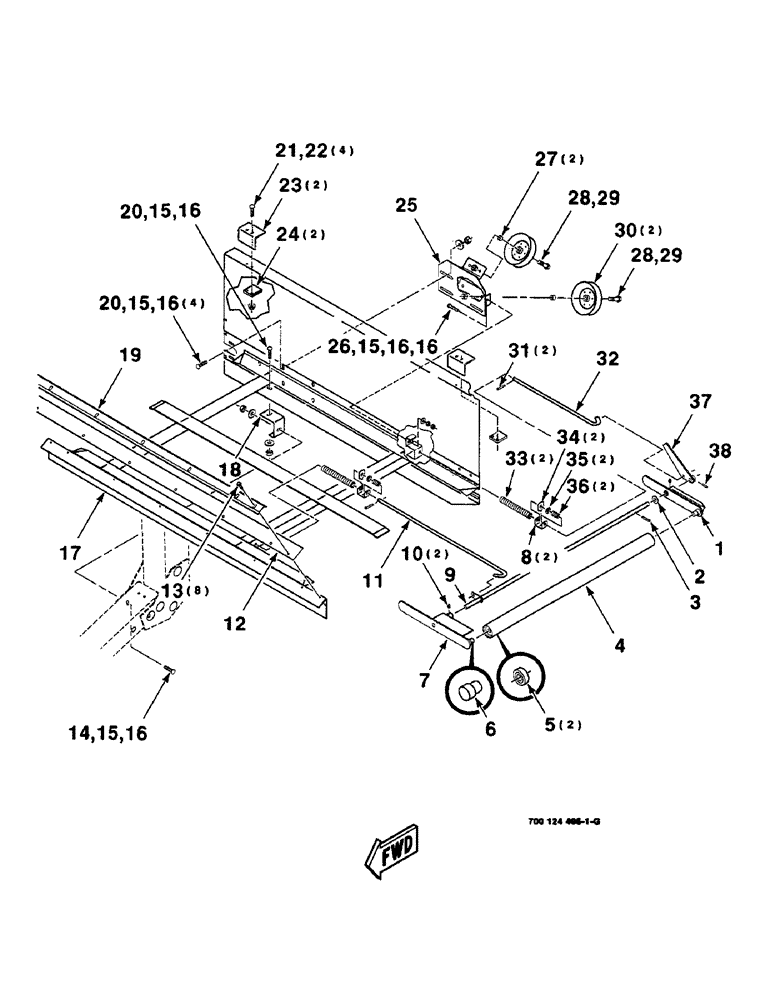

Схема запчастей Case IH 8830 - (6-04) - DRAPER FRAME ASSEMBLY, LEFT, SERIAL NUMBER CFH0030159 THRU CFH0030454, 15 FOOT ONLY (58) - ATTACHMENTS/HEADERS
27
10
21
28
12
20
35
9
14
1
37
15
16
30
29
5
15
36
16
16
13
25
3
29
4
38
20
22
26
15
16
7
6
33
11
2
16
28
24
8
32
17
15
23
19
31
18
34

Артикул

Название

Примечание

Количество

1

700121219

ARM

WA - left, rear

1шт.

2

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

3

62224

PIN, SPLIT (COTTER)

3/16 X 1 COTTER PIN

1шт.

4

700115392

ROLLER

WA (Includes item 5)

1шт.

5

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

BEARING

2шт.

6

700107939

SPINDLE

1шт.

7

700121220

ARM

WA - left, front (Includes item 6) (S.N. CFH0030159 thru CFH0030378)

1шт.

700130404

ARM

WA - left, front (Includes item 6) (S.N. CFH0030379 thru CFH0030454)

1шт.

8

700121227

CLIP

2шт.

9

700121254

SHAFT

WA

1шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.

11

700121230

ROD

1шт.

12

700124060

GUARD

1шт.

13

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

8шт.

14

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

15

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

7шт.

16

425-106

NUT,3/8"-16, Cl 5

8шт.

17

700124440

FRAME

WA - draper, left

1шт.

18

700119555

ANGLE

- draper stop

1шт.

19

700124063

RETAINER

1шт.

20

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

5шт.

21

434-416

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

1/4-20 X 1 RHSNB

4шт.

22

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

23

700118524

BRACKET

ANGLE

2шт.

24

700115400

BAR PLATE

BEARING

2шт.

25

700124436

SUPPORT

WA - idler

1шт.

26

7771660

SCREW,Hex, 3/8" - 16 x 4", Gr 5

3/8-16 X 4 FTC

1шт.

27

6500433

BUSHING

SPACER

2шт.

28

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

29

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

30

700709514

PULLEY

IDLER-V

2шт.

31

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

32

700124655

ROD

1шт.

33

700707580

SPRING

- compression

2шт.

34

700121229

LOCK

TAB

2шт.

35

95-81100

WASHER,33/64" x 7/8" x .049"

1/2 X 18 GAUGE NRMB

2шт.

36

700703267

COMPRESSION SPRING

SPRING - compression

2шт.

37

700120820

ARM

WA - left

1шт.

38

38-11216

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.
