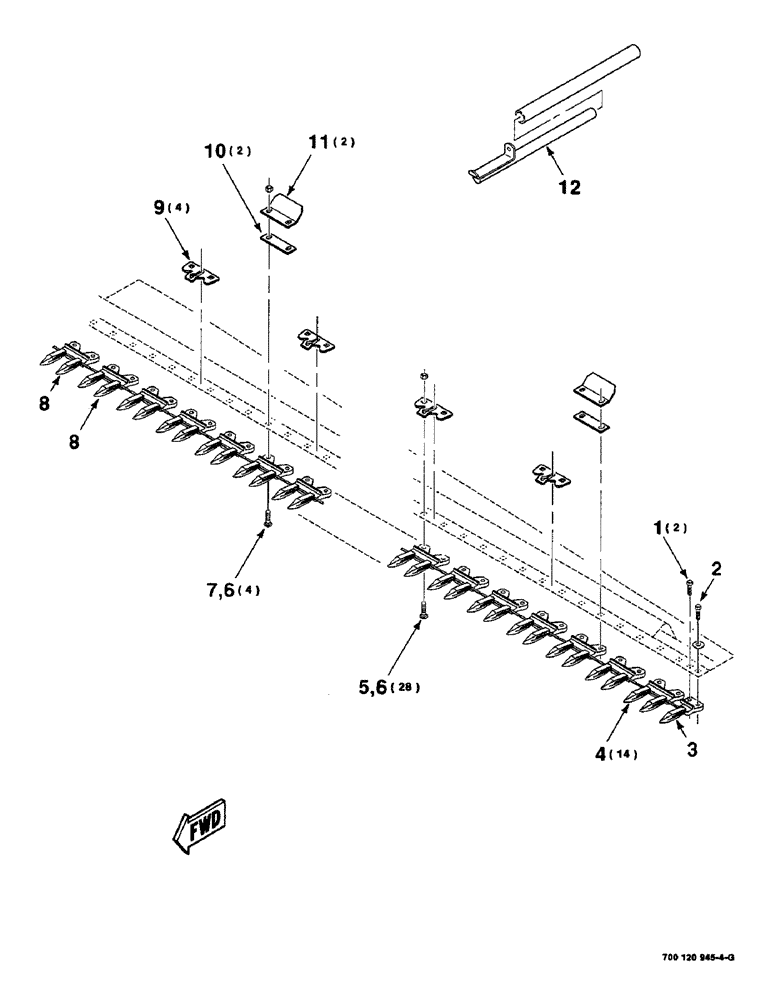

Запчасти Case IH 8830 (5-14) - GUARD ASSEMBLY, LEFT, 15 FOOT ONLY (58) - ATTACHMENTS/HEADERS

1

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

2

496-21047

WASHER

7/16 HARDENED PLAIN WASHER

1шт.

3

49395

GUARD

- single

1шт.

4

700700845

GUARD

GUARD - double

14шт.

5

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

28шт.

6

425-107

NUT,7/16"-14, G5

7/16-14 H

32шт.

7

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

7/16-14 X 1-3/4 RHSNB

4шт.

8

748160

GUARD

- double

2шт.

9

700111204

CLIP

HOLDDOWN

4шт.

10

6821268

SHIM

- right

2шт.

11

700116829

BRACKET

- holddown

2шт.

12

6135081

GUARD

STRAIGHTENER, guard

1шт.
