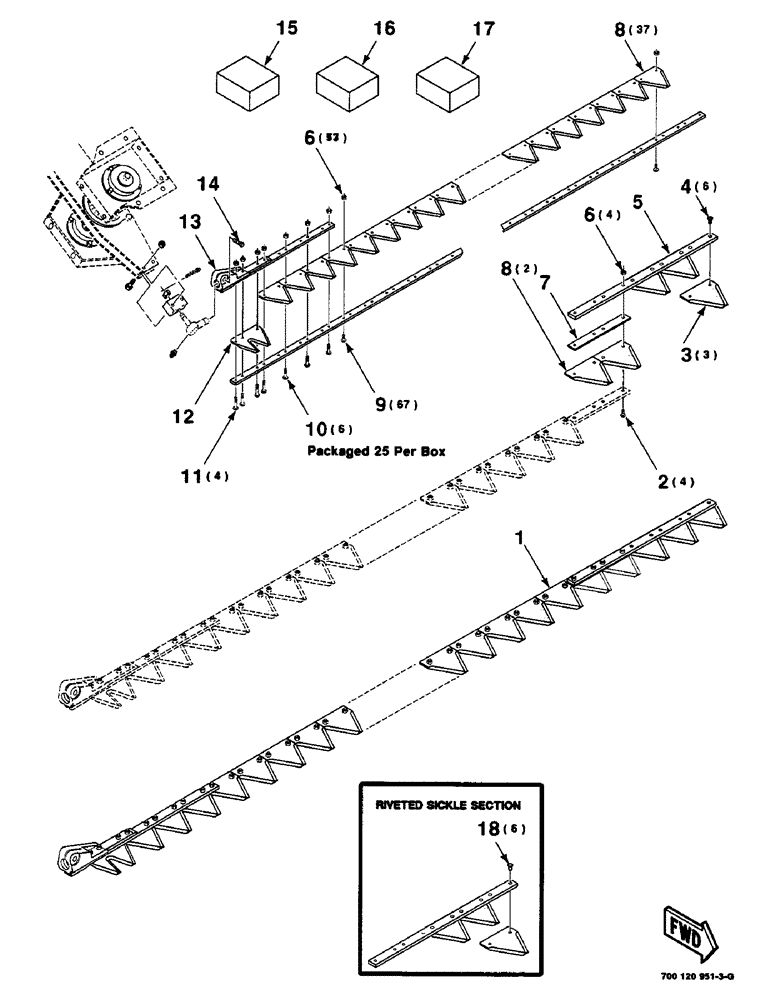

Запчасти Case IH 8830 (5-12) - SICKLE ASSEMBLY, RIGHT, 21 FOOT ONLY (58) - ATTACHMENTS/HEADERS

1

700715811

KNIFE

SICKLE ASSEMBLY - right complete

1шт.

2

700705297

KIT

#12-24 X 1 BOLT (Order item 16)

4шт.

3

51200281

KNIFE SECTION

SECTION - sickle, top serrated

3шт.

Ref #18 and #3 748210 sickle section. this part comes from production w/countersunk rivet. per hfi engr the sickle section vendor has a machine that can apply this rivet in prod. but for service, there probably is not a machine out in the field to do this, and normal field installation of the rivet laying loose in the countersunk hole when it is peened from the opposite side. For field repairs, engineer wants to use the oval head rivet and peen the rivet into the countersunk hole which will result in a se

1шт.

4

700715160

HARDWARE,Flat Hd, CSK, #12 - 24 x 0.50", Spcl

12-24 X 1/2 HSFCSHCS (Package of 25 bolts & nuts)

6шт.

5

700715804

EXTENSION

SICKLE - extension complete

1шт.

6

1954816C1

LOCK NUT

#12-24 LOCKNUT (Packaged with items 15, 16 and 17)

81шт.

7

700116713

SPACER

- sickle bar

1шт.

8

49254

KNIFE SECTION

SECTION - sickle, top serrated (Packaged 25 per box)

39шт.

9

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT (Order item 15)

67шт.

10

700709663

BOLT AND NUT

12-24 X 7/8 BOLT (Package of 25 bolts & nuts)

6шт.

11

700706479

BOLT AND NUT

#12-24 X 1-1/4 BOLT (Order item 17)

4шт.

12

700705463

KNIFE SECTION

SECTION - double end

1шт.

13

700116709

KNIFE HEAD

SICKLE HEAD WA

1шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

15

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT & LOCKNUT (Packaged 50 per box)

1шт.

16

700705297

KIT

#12-24 X 1 BOLT, locknut & hex washer (Packaged 25 per box)

1шт.

17

700706479

BOLT AND NUT

#12-24 X 1-1/4 BOLT & LOCKNUT (Packaged 25 per box)

1шт.

18

64923

RIVET

#5-1/2 X 7/16 OVAL HEAD RIVET (Packaged 1 pound per box)

6шт.
