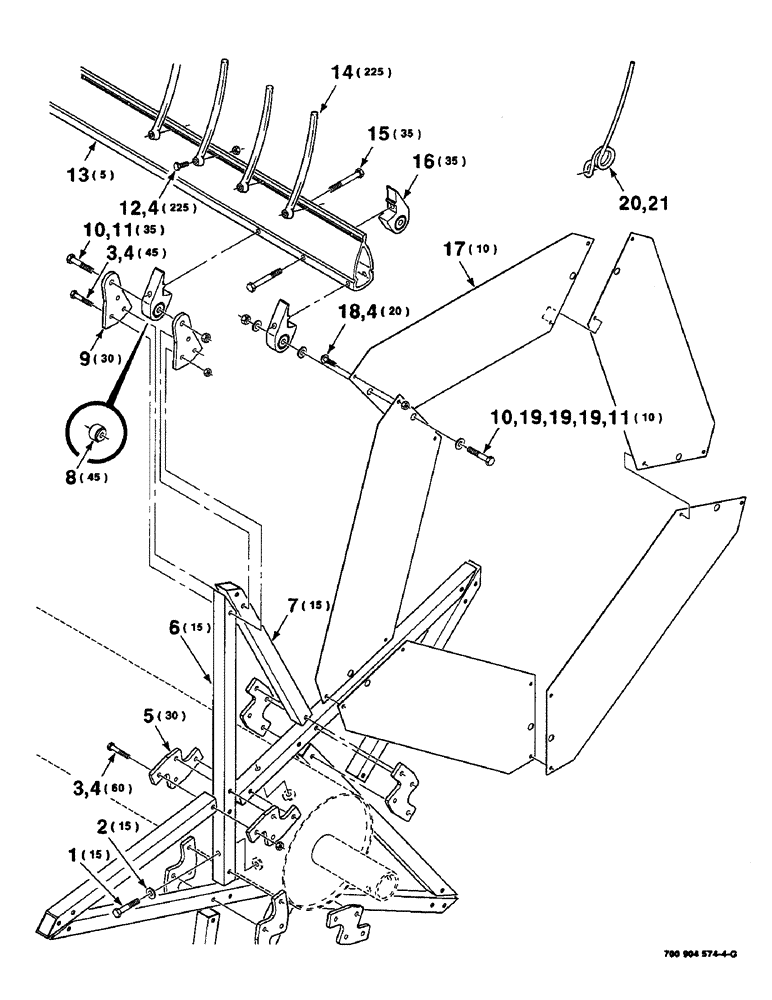

Запчасти Case IH 8830 (3-10) - PICKUP REEL ASSEMBLY, 15 FOOT, UNIVERSAL HARVESTER SERIAL NUMBER 000000 THRU 224699 (58) - ATTACHMENTS/HEADERS

1

700708893

SCREW

5/16-18 X 1-3/4 BOLT - lock

15шт.

2

700708890

WASHER

5/16 WASHER - special

15шт.

3

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

105шт.

4

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

350шт.

5

700708865

COVER PLATE

PLATE - inner

30шт.

6

700708870

ARM

- bat

15шт.

7

700708871

ARM

BRACE - arm, bat

15шт.

8

700713276

BALL BEARING

BEARING

45шт.

9

700708863

COVER PLATE

PLATE - tip

30шт.

10

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

45шт.

11

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

45шт.

12

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

225шт.

13

700708885

BAT

(15 Foot)

5шт.

14

700714195

TINE

- plastic

225шт.

15

700708902

SCREW

5/16-18 X 2-1/2 SELF TAPPING SCREW

35шт.

16

700713277

BLOCK

HOLDER - bearing (Includes item 8)

35шт.

Note item 16, holder for bearing, for style with unthreaded holes use 703769 BOLT and 232-5315 NUT

1шт.

17

8745416

SHIELD

- end

10шт.

18

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 X 1/2 CRPHMS

20шт.

19

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

30шт.

20

700712427

TINE

- wire (Optional - single)

1шт.

21

700712428

TINE

- wire (Optional - box of 300)

1шт.
