Запчасти Case IH 8830 (3-02) - REEL ARM ASSEMBLY, LEFT AND RIGHT (58) - ATTACHMENTS/HEADERS

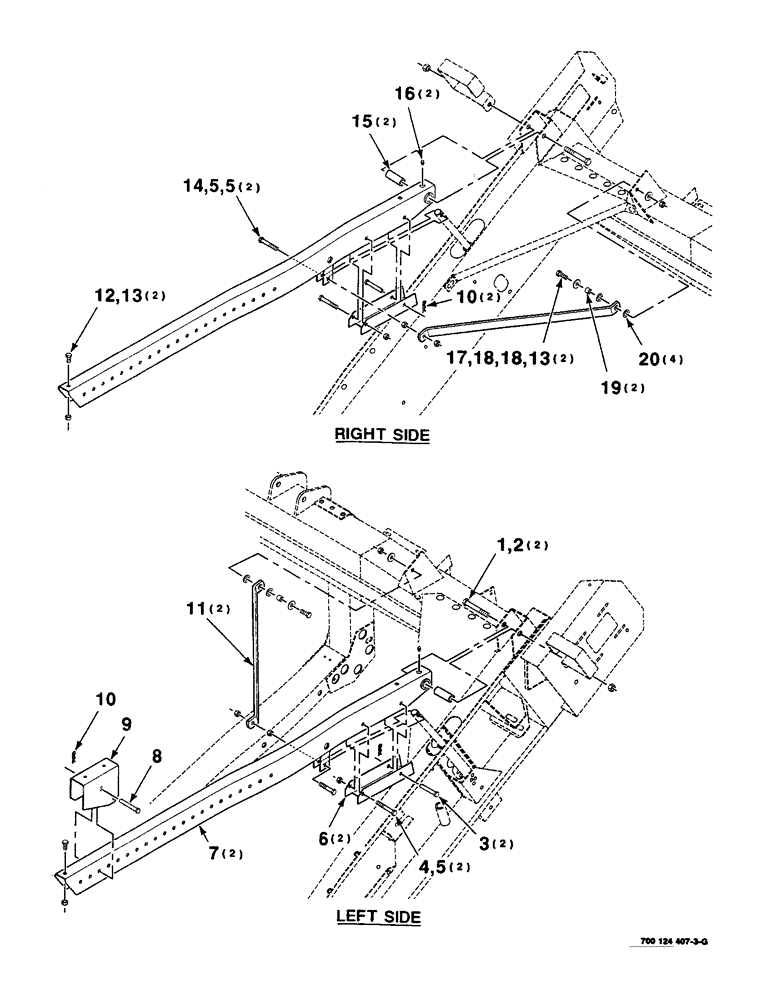

Схема запчастей Case IH 8830 - (3-02) - REEL ARM ASSEMBLY, LEFT AND RIGHT (58) - ATTACHMENTS/HEADERS
8
10
6
10
14
5
1
4
18
16
13
2
12
13
9
15
17
18
11
20
3
7
5
19
5

Артикул

Название

Примечание

Количество

1

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

2

425-1010

NUT,5/8"-11, G5

2шт.

3

439-5848

HEADED PIN,1/2" x 3", G5

1/2 X 3 CLEVIS PIN

2шт.

4

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1/2-13 X 3-1/2 C

2шт.

5

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

6шт.

6

700116333

STOP

- cylinder

2шт.

7

700121147

ARM ASSY.

ARM WA

2шт.

8

700121246

PIN

1/2 X 3-1/2 CLEVIS PIN - special

1шт.

9

700121151

CHANNEL

WA

1шт.

10

T54573

PIN

.120 WIRE HAIR PIN COTTER

3шт.

11

700116345

SUPPORT

STRAP

2шт.

12

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 X 3/4 C

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

14

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

2шт.

15

700116331

SPACER

2шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

17

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

18

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

4шт.

19

6214639

SPACER

BUSHING

2шт.

20

52928

WASHER

3/4 X 14 GAUGE WRMB

4шт.

Выбрано товаров: 20
