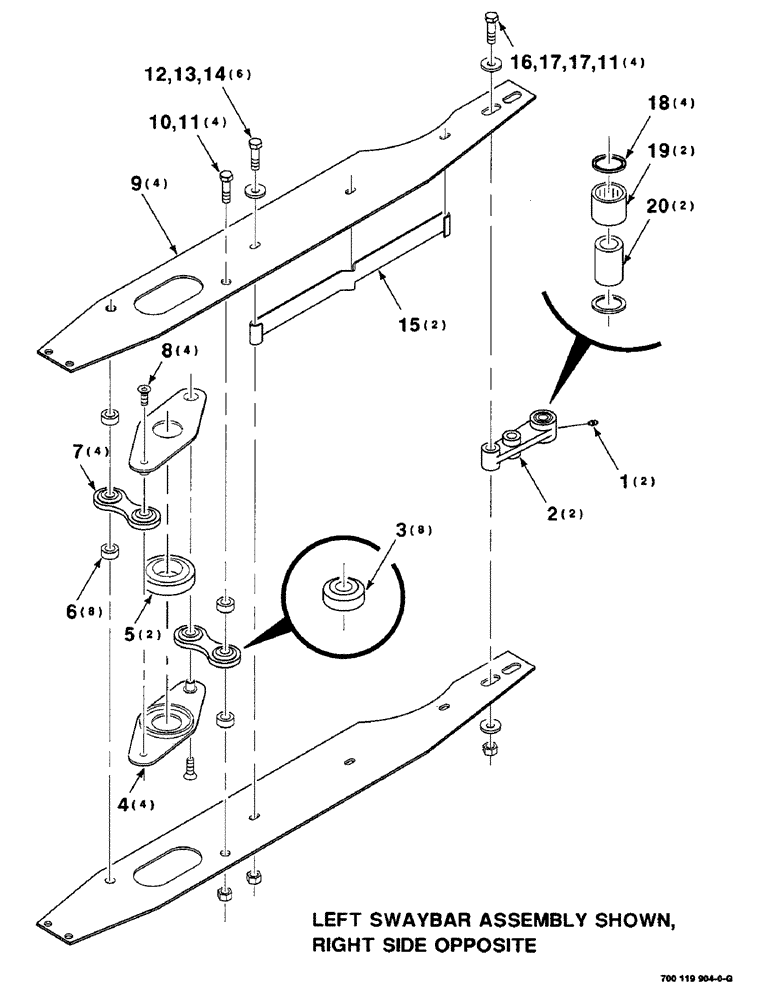

Запчасти Case IH 8830 (2-18) - SWAYBAR ASSEMBLY, SERIAL NUMBER CFH0030159 THRU CFH0030378 (58) - ATTACHMENTS/HEADERS

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

2

700114625

LINK

ASM. (Includes items 1, 18, 19 & 20)

2шт.

3

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

- cylindrical

8шт.

4

700116818

PLATE

- pivot

4шт.

5

611921R92

BEARING, ROLLER, CYL,34.92mm ID x 72mm OD x 19mm W

- cylindrical

2шт.

REF NO. 5. If looking for a different bearing-- another part no used is 700714131 which has a vendor no. of 1108KRR

1шт.

6

700116821

SPACER

8шт.

7

700129134

LINK

ASSEMBLY - pivot (Includes item 3)

4шт.

8

164-130

HEX SOC SCREW,Flat Hd, 1/2" - 20 x 1 1/4"

1/2-13 X 1-1/4 HSFCHCS

4шт.

9

700121348

PLATE

- swaybar

4шт.

10

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

11

230-42110

LOCK NUT,5/8"-11, GA

5/8-11 HCLN

8шт.

12

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

6шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

6шт.

14

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

15

700121349

LARGE PLATE

SPACER

2шт.

16

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8-11 X 2-3/4 C

4шт.

17

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

8шт.

18

697494R91

OIL SEAL

SEAL

4шт.

19

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle

2шт.

20

700114599

BUSHING,16.27mm ID x 25.55mm OD x 38mm L

- needle

2шт.
