Запчасти Case IH 8830 (2-14) - SWAYBAR MOUNTING ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

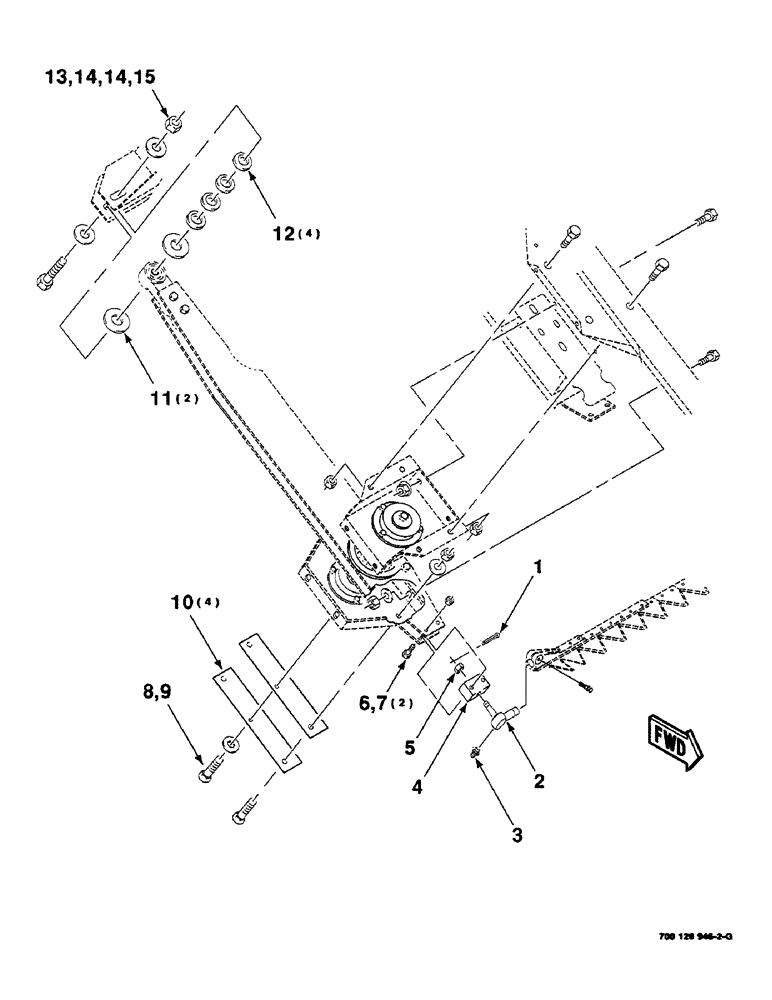

Схема запчастей Case IH 8830 - (2-14) - SWAYBAR MOUNTING ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS
2
14
13
12
8
6
15
9
5
3
10
7
11
4
1
14

Артикул

Название

Примечание

Количество

1

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

2

8045650

BALL JOINT

SOCKET ASSEMBLY (Includes item 5)

1шт.

3

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8 X 90 DEGREE ZERK

1шт.

4

700116824

BLOCK

- sickle

1шт.

5

7775166

SLOTTED NUT,9/16"-18, G5, Thk

9/16-18 SHN - thick

1шт.

6

414-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

1/2-20 X 2-1/2 C

2шт.

7

425-118

NUT,1/2"-20, G5

1/2-20 H

2шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

10

700120721

SHIM

4шт.

11

6855423

WASHER

2шт.

12

495-11066

WASHER,5/8", SAE

5/8 X 14 GAUGE WRMB

4шт.

13

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8-11 X 3-3/4 C

1шт.

14

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

15

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

1шт.

Выбрано товаров: 15
