Запчасти Case IH 8830 (2-12) - SWAYBAR MOUNTING ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

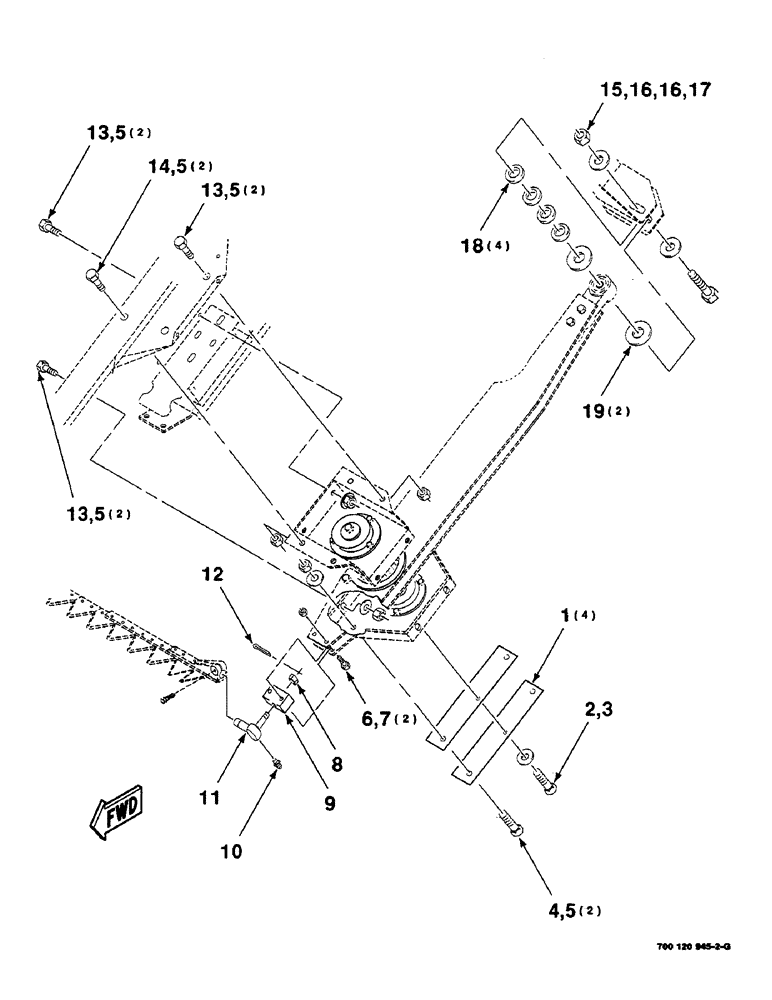

Схема запчастей Case IH 8830 - (2-12) - SWAYBAR MOUNTING ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS
15
5
12
13
5
19
11
5
9
16
7
13
5
18
17
6
4
16
13
5
8
10
3
2
1
14

Артикул

Название

Примечание

Количество

1

700120721

SHIM

4шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

4

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

2шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

10шт.

6

414-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

1/2-20 X 2-1/2 C

2шт.

7

425-118

NUT,1/2"-20, G5

1/2-20 H

2шт.

8

7775166

SLOTTED NUT,9/16"-18, G5, Thk

9/16-18 SHN - thick

1шт.

9

700116824

BLOCK

- sickle

1шт.

10

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8 X 90 DEGREE ZERK

1шт.

11

8045650

BALL JOINT

SOCKET ASSEMBLY (Includes item 8)

1шт.

12

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

13

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

6шт.

14

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

2шт.

15

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8-11 X 3-3/4 C

1шт.

16

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

17

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

1шт.

18

495-11066

WASHER,5/8", SAE

5/8 X 14 GAUGE WRMB

4шт.

19

6855423

WASHER

2шт.

Выбрано товаров: 19
