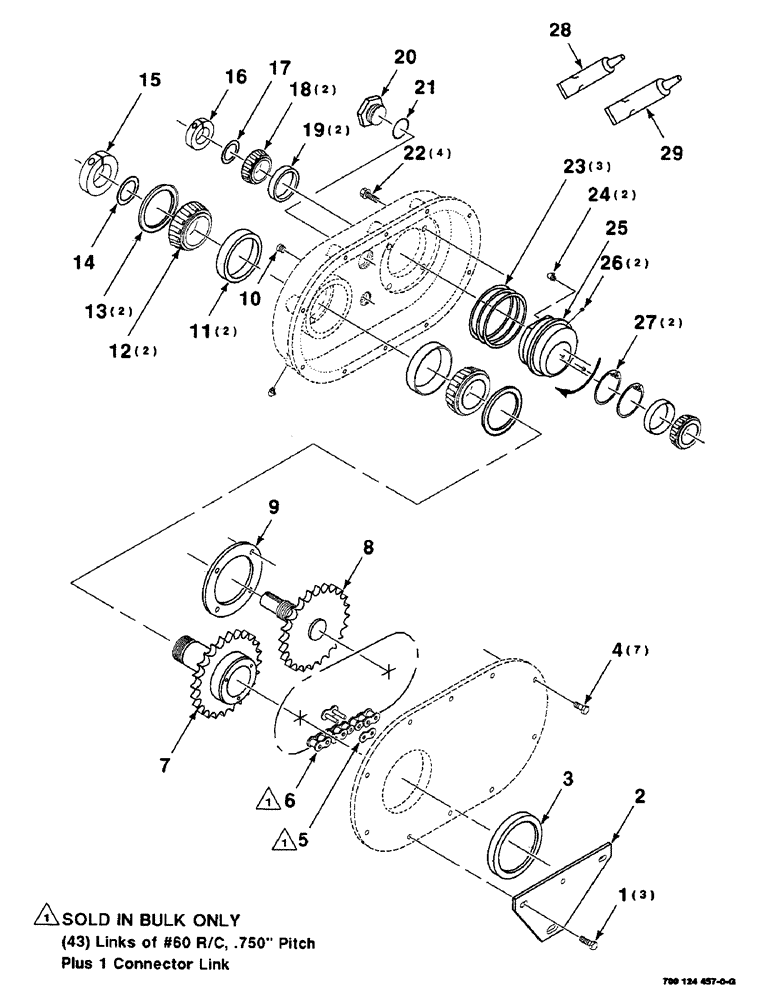

Запчасти Case IH 8830 (2-04) - CHAIN BOX ASSEMBLY, 700124457 CHAIN BOX ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

700124457

CHAIN (AG)

CHAIN BOX ASSEMBLY COMPLETE

1шт.

1

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

3шт.

2

700124466

PLATE

- anchor

1шт.

3

7807332

OIL SEAL,85.65mm ID x 111.19mm OD x 9.93mm Thk

- oil

1шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

7шт.

5

241-1416

LINK

- connector, #60

1шт.

6

7086002

CHAIN (AG)

CHAIN - roller, #60 (10 Foot bulk)

1шт.

7

700124472

SPROCKET ASSY.

SPROCKET WA - 60C24

1шт.

8

700124463

SPROCKET ASSY.

SPROCKET WA - 60B24

1шт.

9

700124462

RING

- clamp

1шт.

10

152127H1

BREATHER,1/8"-27, Short

PLUG - vent

1шт.

11

170254R1

BEARING, CUP

CUP - bearing

2шт.

12

298194R91

ROLLER BEARING,44.45mm ID x 29.37mm W

CONE- bearing

2шт.

13

700706454

SEAL

2шт.

14

52290

BUSHING

1шт.

15

700706453

COLLAR

- clamp, threaded

1шт.

16

700706600

COLLAR

- clamp, threaded

1шт.

17

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

1шт.

18

700711926

CONE

- bearing

2шт.

19

651817R1

BEARING CUP

CUP - bearing

2шт.

20

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

O-RING, plug

1шт.

21

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

22

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

23

700711905

SHIM

3шт.

24

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

25

700124460

HUB

CAM - hub

1шт.

26

69500

SET SCREW

1/4 X 1/4 CPHSSS

2шт.

27

100-21231

SNAP RING,2.312", Int, #231

Ring, Snap, 2.312", Int, #231

2шт.

28

700707823

SEALANT

- 10.3 oz tube

1шт.

29

B505154

LUBRICANT

LUBE 16 OZ TUBE

1шт.
