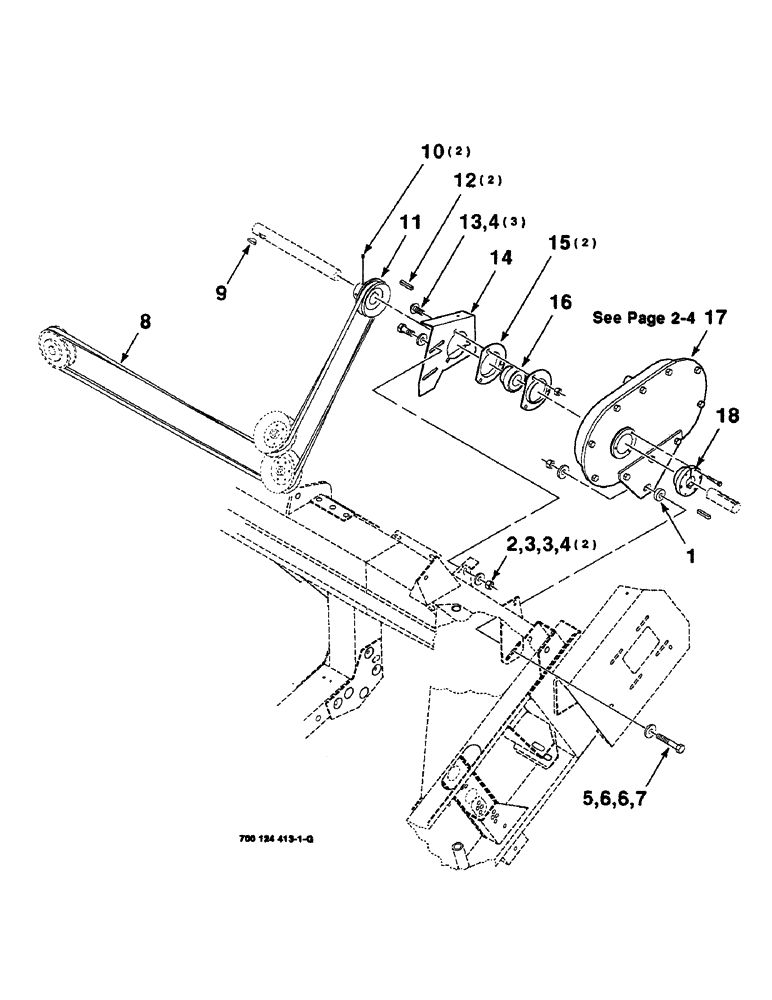

Запчасти Case IH 8830 (2-02) - DRAPER DRIVE ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

1

317693

SPACER

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

4

425-106

NUT,3/8"-16, Cl 5

5шт.

5

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

6

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

8

700711883

V-BELT,3254 mm L

1шт.

9

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

1шт.

10

483-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

3/8-16 X 1/2 CPHSSS NP

2шт.

11

700709136

PULLEY

SHEAVE (S.N. CFH0030159 thru CFH0030251)

1шт.

700129112

SHEAVE

(S.N. CFH0030252 and later)

1шт.

12

T13450

KEY

1/4 X 1/4 X 1-1/4 KEY

2шт.

13

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

3шт.

14

700124467

PLATE

SUPPORT WA - bearing

1шт.

15

NLS

NO LONGER SERVICED

- bearing

2шт.

16

710004

PTO SHAFT

1шт.

17

700124457

CHAIN (AG)

CHAINBOX ASSEMBLY

1шт.

18

7747280

ASSEMBLY

BUSHING

1шт.
