Запчасти Case IH 8830 (9-156) - REEL MOUNTING AND CAM ASSEMBLY, 21 FOOT, PICKUP (58) - ATTACHMENTS/HEADERS

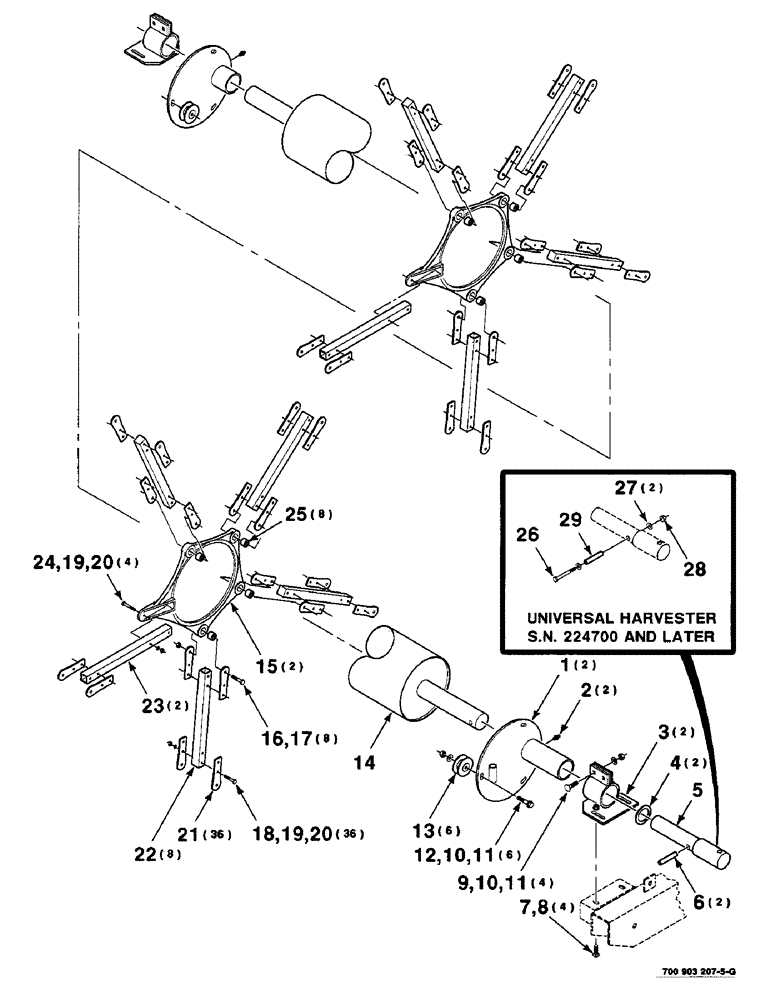

Схема запчастей Case IH 8830 - (9-156) - REEL MOUNTING AND CAM ASSEMBLY, 21 FOOT, PICKUP (58) - ATTACHMENTS/HEADERS
11
18
8
10
23
20
1
21
29
7
24
2
19
16
13
14
19
10
27
17
4
22
20
11
3
16
5
6
12
28
9
25
15

Артикул

Название

Примечание

Количество

1

700708886

SHAFT

PLATE - control

2шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

3

700708887

CLAMP

- mounting, reel

2шт.

4

700708889

WASHER

- shaft

2шт.

5

700708892

CONTROL SHAFT

SHAFT - stub

1шт.

6

700708903

PIN

1/2 X 2-1/2 SPRING PIN

2шт.

7

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

8

231-5146

FLANGE NUT,3/8"-16

4шт.

9

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

4шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

10шт.

11

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

10шт.

12

700711134

SCREW

3/8-16 X 1-3/4 HFS GR8

6шт.

13

700708888

ROLLER

- control plate

6шт.

14

700708895

SHAFT

TUBE - reel, 21 foot

1шт.

15

700708869

SUPPORT

RING - track

2шт.

16

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

8шт.

17

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

8шт.

18

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

36шт.

19

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1/4 EXTERNAL TOOTH LOCK WASHER

40шт.

20

425-104

NUT,1/4"-20, Cl 5

40шт.

21

700708864

COVER PLATE

PLATE - end

36шт.

22

700708873

ARM

- control, regular

8шт.

23

700708872

ARM

- control, fixed

2шт.

24

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

.25 X 1.75 UNC GR5 YZD

4шт.

25

700713276

BALL BEARING

BUSHING - bearing

8шт.

26

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1/4-20 X 2-1/2 C

1шт.

27

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.

28

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

29

700716876

PIN

1/2 X 2 SPRING PIN

1шт.

Выбрано товаров: 29
