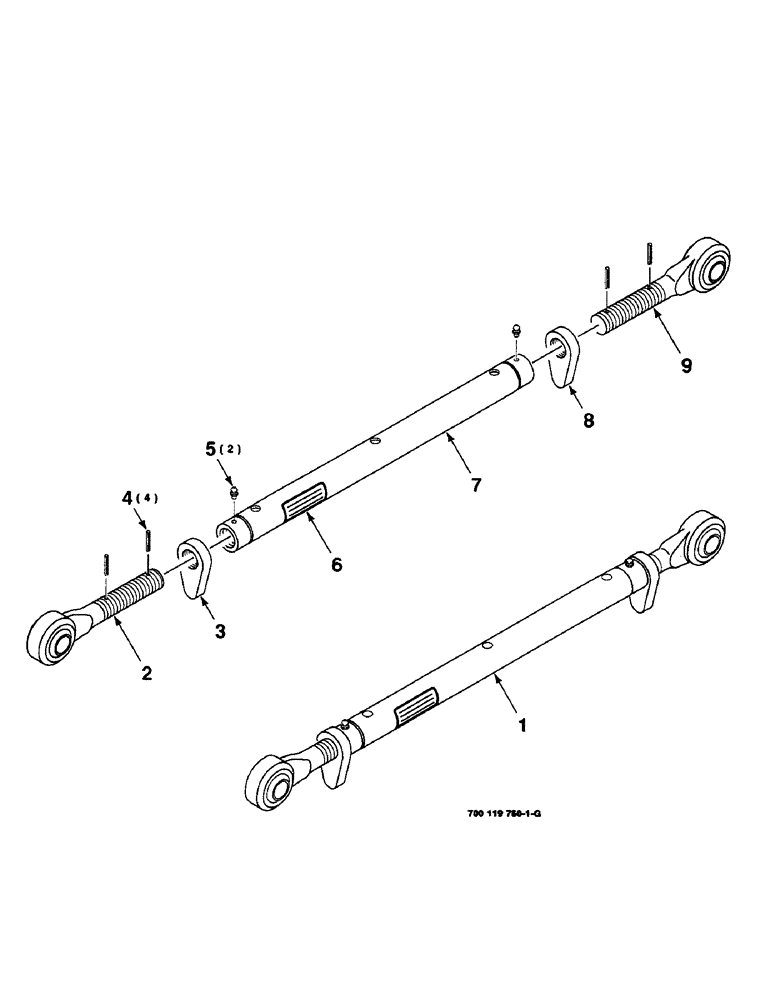

Запчасти Case IH 8830 (9-126) - HEADER SUPPORT LINKAGE ASSEMBLY, UPPER, 700119760 LINK ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

1

700119760

TIE-ROD

LINK ASSEMBLY - complete

1шт.

2

700117693

TIE-ROD

END LINK - right hand thread

1шт.

3

700117684

HANDLE

- lock, right hand thread

1шт.

4

438-11220

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

4шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

6

700705829

DECAL

- guard angle

1шт.

7

700116671

TUBE

- center (Includes item 6)

1шт.

8

700117683

HANDLE

- lock, left hand thread

1шт.

9

700117692

TIE-ROD

END LINK - left hand thread

1шт.
