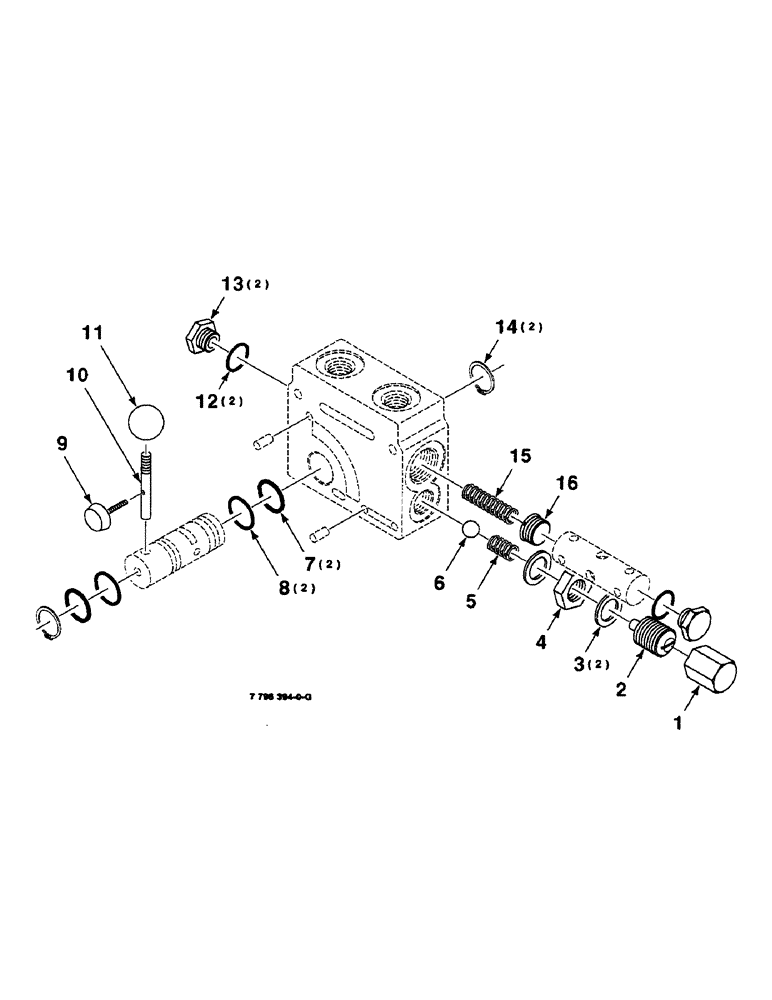

Запчасти Case IH 8830 (9-106) - FLOW CONTROL VALVE ASSEMBLY, 7796394 VALVE ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

7796394

VALVE

ASSEMBLY COMPLETE

1шт.

1

8733297

CAP

1шт.

2

8733347

ADJUSTMENT SCREW

- adjusting

1шт.

3

8733289

WASHER

- aluminum

2шт.

4

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4-16 HJN GR2

1шт.

5

8733321

SPRING

- relief

1шт.

6

211-1016

BALL,12.7mm OD, Gr 24

Steel 1/2" Dia

1шт.

7

8733370

BACK-UP RING

RING - back up

2шт.

8

700708088

O-RING

2шт.

9

700704950

THUMB SCREW

SCREW - thumb

1шт.

10

700704948

HANDLE

1шт.

11

700704949

KNOB

1шт.

12

738484

O-RING

2шт.

13

8733305

PLUG

- main bore

2шт.

14

103-1193

SNAP RING,#93, Ext

Ring, Snap, #93, Ext

2шт.

15

8733313

SPRING

- metering

1шт.

16

8733354

PLUG

- meter spool

1шт.
