Запчасти Case IH 8830 (9-100) - ADAPTER KIT ASSEMBLY, REEL LIFT ELECTRICAL, TRACTOR, TO BE ORDERED THRU WHOLEGOODS ONLY (58) - ATTACHMENTS/HEADERS

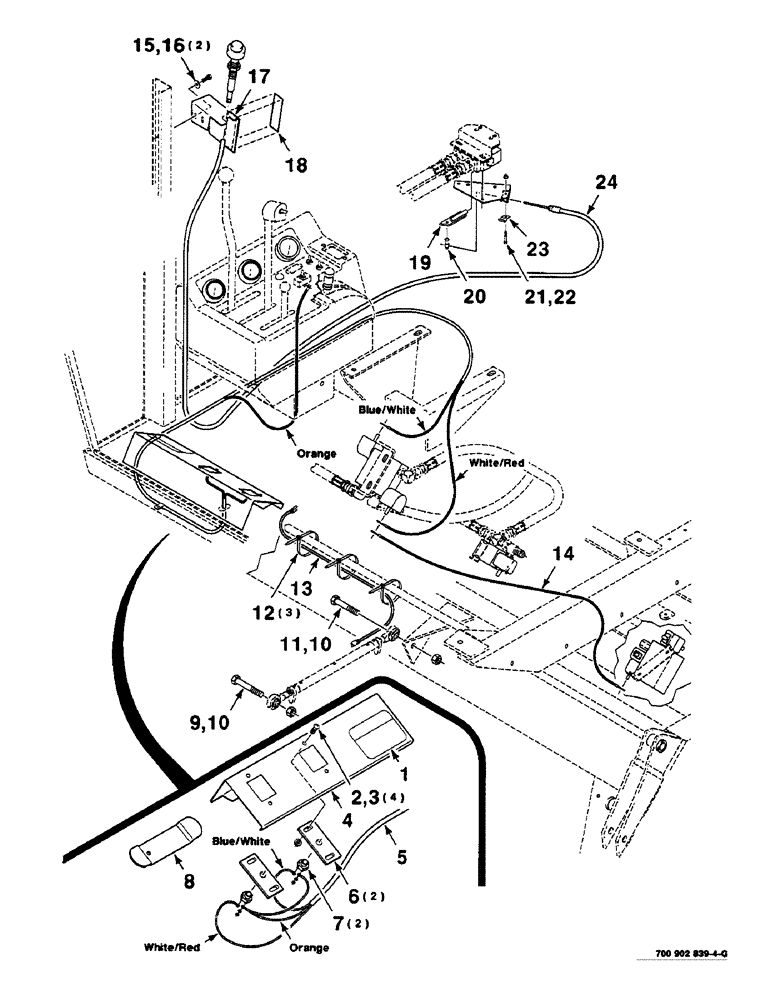

Схема запчастей Case IH 8830 - (9-100) - ADAPTER KIT ASSEMBLY, REEL LIFT ELECTRICAL, TRACTOR, TO BE ORDERED THRU WHOLEGOODS ONLY (58) - ATTACHMENTS/HEADERS
11
18
1
12
10
21
22
23
24
9
10
7
19
8
6
2
3
15
14
17
5
13
16
20

Артикул

Название

Примечание

Количество

HK60618

ADAPTER

KIT COMPLETE

1шт.

1

7178932

DECAL

- warning

1шт.

2

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

5/16-18 X 3/4 CRPHMS

4шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

4

700118601

SUPPORT

- right

1шт.

5

700708831

WIRE HARNESS

HARNESS - deflector

1шт.

6

700118549

SUPPORT

MOUNTING - switch

2шт.

7

8025637

SWITCH

- backup

2шт.

8

700118548

PEDAL

1шт.

9

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

1шт.

10

425-1012

NUT,3/4"-10, G5

2шт.

11

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

3/4-10 X 3-1/4 C

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

13

700706637

FLEXIBLE HOSE

HARNESS - wire

1шт.

14

700707732

WIRE

- electrical

1шт.

15

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

16

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.

17

700124345

SUPPORT

ASSEMBLY

1шт.

18

700711881

DECAL

- reel spreed

1шт.

19

1661479

ARM

WA

1шт.

20

7041932

ROD, CONNECTING

CONNECTOR

1шт.

21

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

22

425-104

NUT,1/4"-20, Cl 5

1шт.

23

8797433

CLAMP

1шт.

24

700710340

CABLE

ASSEMBLY - control

1шт.

Выбрано товаров: 25
