Запчасти Case IH 8830 (9-086) - U-JOINT ASSEMBLY, 700711899 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

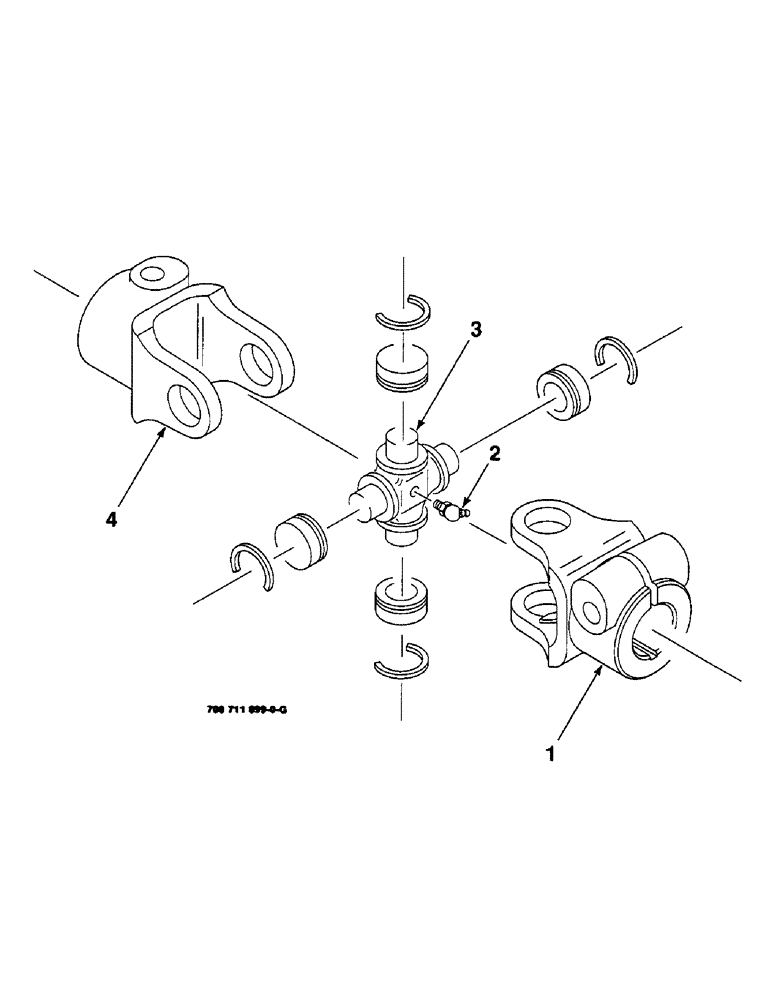

Схема запчастей Case IH 8830 - (9-086) - U-JOINT ASSEMBLY, 700711899 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS
3
4
1
2

Артикул

Название

Примечание

Количество

700711899

YOKE

U-JOINT ASSEMBLY COMPLETE

1шт.

1

700711271

FORK

YOKE - clamp

1шт.

2

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

ZERK 1/8-27 X 65 DEGREES

1шт.

3

757443

U-JOINT SPIDER

CROSS AND BEARING KIT (Includes item 2)

1шт.

4

757716

CLAMP

YOKE - clamp

1шт.

Выбрано товаров: 5
