Запчасти Case IH 8830 (9-084) - HEADER DRIVE ASSEMBLY (58) - ATTACHMENTS/HEADERS

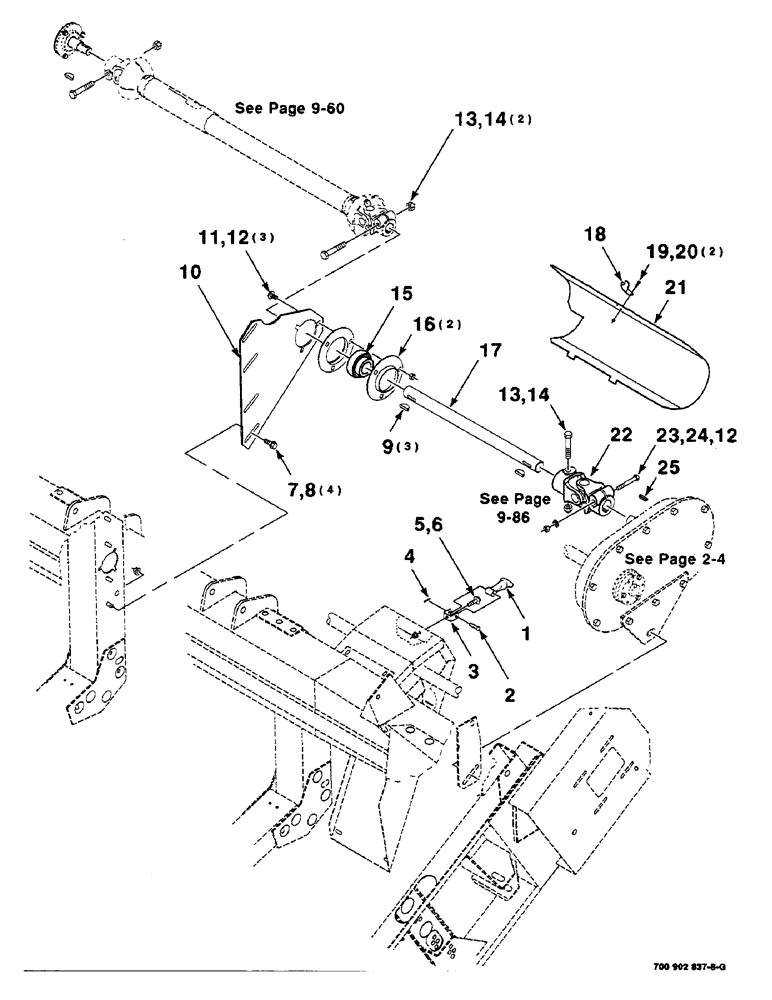

Схема запчастей Case IH 8830 - (9-084) - HEADER DRIVE ASSEMBLY (58) - ATTACHMENTS/HEADERS
23
10
5
7
3
1
12
9
21
17
6
25
19
13
15
18
13
24
14
2
12
11
22
8
14
16
20
4

Артикул

Название

Примечание

Количество

1

494307C1

LATCH

HOOK

1шт.

2

141-13

CLEVIS PIN,1/4" x 1.594"

1/4 X 1-1/2 CLEVIS PIN

1шт.

3

776674

SUPPORT

BRACKET

1шт.

4

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

7

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

9

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

3шт.

10

700124368

PLATE

- mounting

1шт.

11

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

3шт.

12

425-106

NUT,3/8"-16, Cl 5

4шт.

13

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

3шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

15

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

1шт.

16

617863R1

FLANGED BEARING

- bearing

2шт.

17

700124369

SHAFT

1шт.

18

7025075

BRACKET

1шт.

19

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS

2шт.

20

225-14110

NUT,#10-24

2шт.

21

700124496

SHIELD

1шт.

22

700711899

YOKE

U-JOINT ASSEMBLY

1шт.

23

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

1шт.

24

492-11038

LOCK WASHER,3/8"

1шт.

25

1707058

KEY

1/4 X 1-1/4 RD END KEY

1шт.

Выбрано товаров: 25
