Запчасти Case IH 8830 (9-082) - VALVE ASSEMBLY, REEL DRIVE (58) - ATTACHMENTS/HEADERS

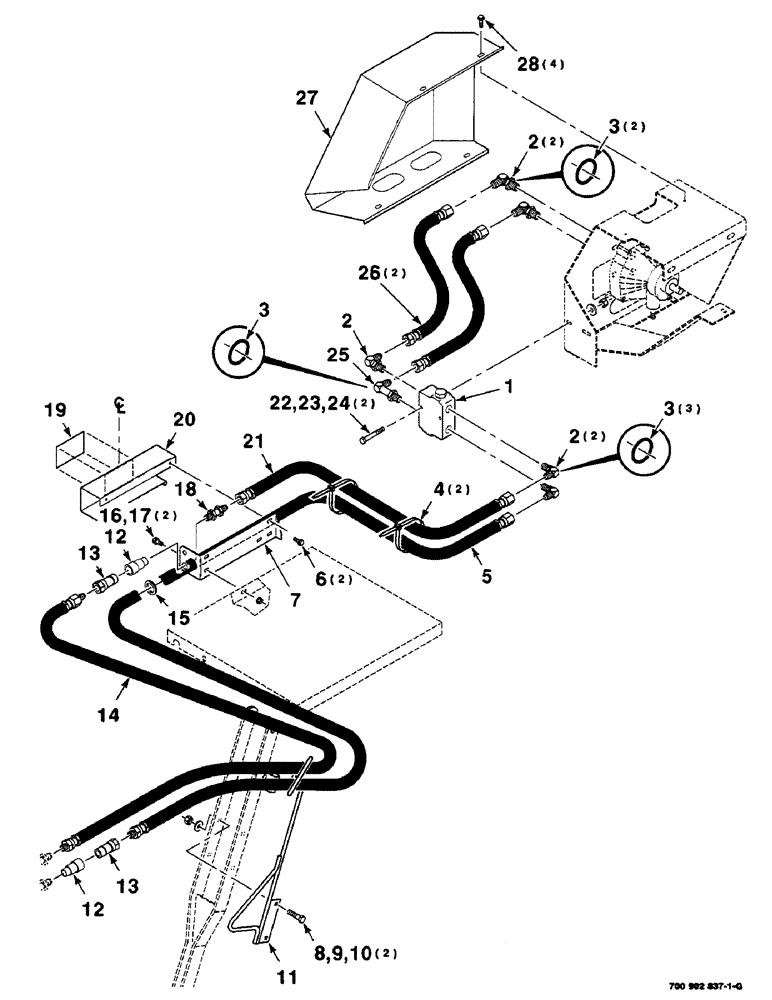

Схема запчастей Case IH 8830 - (9-082) - VALVE ASSEMBLY, REEL DRIVE (58) - ATTACHMENTS/HEADERS
5
1
12
2
3
17
26
15
19
6
4
20
25
22
2
28
11
18
13
24
13
9
23
21
10
7
8
12
3
16
27
14
3
2

Артикул

Название

Примечание

Количество

1

700709812

HYDRAULIC VALVE

VALVE - relief

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, o-ring (Incl. item 3)

5шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

6шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

5

700710284

HYDRAULIC HOSE,12.70 mm ID x 2600.00 mm, SAE 100R1

12.70 mm ID x 2600.00 mm, SAE 100R1

1шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

7

700124375

SUPPORT

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

700124480

ROD

WA

1шт.

12

H436396

COUPLING

- quick disconnect

2шт.

13

1-7141

FITTING

NIPPLE - quick disconnect

2шт.

14

700711902

HYDRAULIC HOSE,12.70 mm ID x 1550.00 mm, SAE 100R2

12.70 mm ID x 1550.00 mm, SAE 100R2

1шт.

15

7027360

GROMMET

1шт.

16

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

17

231-5146

FLANGE NUT,3/8"-16

2шт.

18

700707494

ADAPTER

1шт.

19

700712111

DECAL

1шт.

20

700124376

COVER

WA

1шт.

21

700711900

HYDRAULIC HOSE,12.70 mm ID x 1150.00 mm, SAE 100R2

12.70 mm ID x 1150.00 mm, SAE 100R2

1шт.

22

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16-18 X 2-1/4 C

2шт.

23

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

24

425-105

NUT,5/16"-18, G5

2шт.

25

700701939

ELBOW

- 90 degree, o-ring (Includes item 3)

1шт.

26

700710282

HYDRAULIC HOSE,12.70 mm ID x 400.00 mm, TYPE 100R1 SAE J517

12.70 mm ID x 400.00 mm, TYPE 100R1 SAE J517

2шт.

27

700121783

SHIELD

- pump

1шт.

28

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

Выбрано товаров: 28
