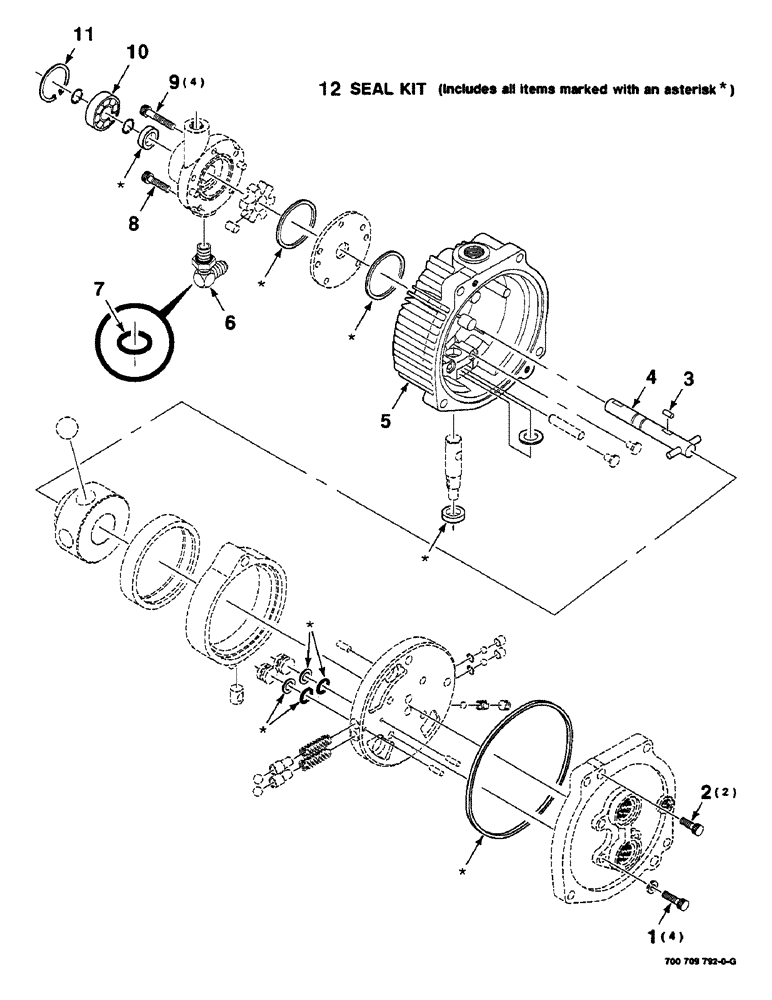

Запчасти Case IH 8830 (9-080) - PUMP ASSEMBLY, VARIABLE, 700709792 HYDRAULIC PUMP ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

700709792

HYDRAULIC PUMP

ASSEMBLY COMPLETE

1шт.

700709792R

REMAN-HYD PUMP

8820, 8830 S/N CFH0030159 & Aft., 8840

1шт.

700709792C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

461-33116

HEX SOC SCREW,5/16"-18 x 1"

5/16-18 X 1 HSHCS SPL

4шт.

2

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

5/16-18 X 3/4 HSHCS SPL

2шт.

3

700710700

PIN

- drive

1шт.

4

700710701

SHAFT

- input

1шт.

5

700710625

COVER

WITH CONTROL SHAFT

1шт.

6

700710702

FITTING

- hose (Includes item 7)

1шт.

7

1-7084

O-RING

1шт.

8

61-33120

HEX SOC SCREW,5/16"-18 x 1 1/4"

5/16-18 X 1-1/4 HSHCS SPL

1шт.

9

7701667

HEX SOC SCREW,5/16" - 18 x 1 3/4"

5/16-18 X 1-3/4 HSHCS SPL

4шт.

10

700716620

BEARING

1шт.

11

700710690

LOCKING RING

RETAINING RING

1шт.

12

700710692

SEAL KIT

1шт.
