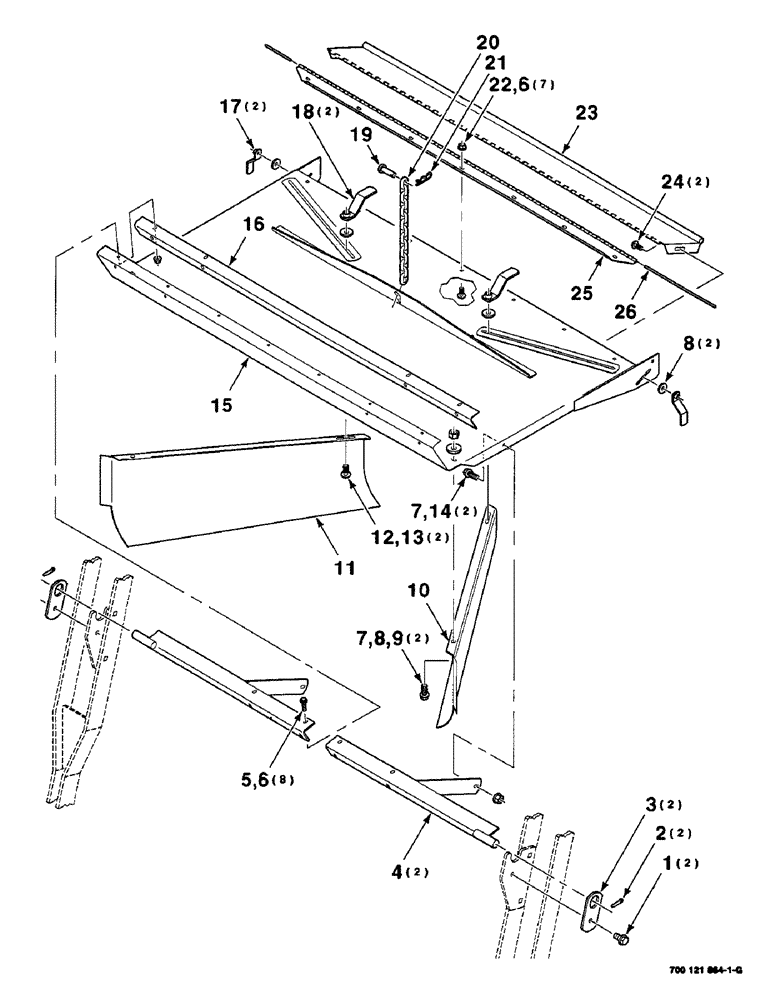

Запчасти Case IH 8830 (9-046) - WINDROW FORMING SHIELDS (58) - ATTACHMENTS/HEADERS

1

7883366

SCREW,Hex Washer, 3/8" - 16 x 1/2"

3/8-16 X 1/2 HWHMS

2шт.

2

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

2шт.

3

700110223

STRAP

RETAINER

2шт.

4

700121866

MOUNTING PARTS

MOUNTING WA

2шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

8шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

15шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

4шт.

8

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

9

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

2шт.

10

6833289

DEFLECTOR

- left

1шт.

11

6833297

DEFLECTOR

- right

1шт.

12

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

2шт.

13

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

14

231-5146

FLANGE NUT,3/8"-16

2шт.

15

700121865

SHIELD

WA - top, H/C

1шт.

16

700121873

SUPPORT

1шт.

17

6191852

HANDLE

WA

2шт.

18

6457469

LEVER ASSY.

LEVER WA

2шт.

19

141-11

CLEVIS PIN,3/8" x 1 1/4"

3/8 X 1-1/4 CLEVIS PIN

1шт.

20

700116874

CHAIN (AG)

CHAIN

1шт.

21

T54573

PIN

.120 WIRE HAIR PIN COTTER

1шт.

22

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

7шт.

23

6833321

DEFLECTOR

- rear

1шт.

24

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

25

6833339

HINGE

1шт.

26

6833347

PIN

- hinge

1шт.
