Запчасти Case IH 8830 (9-044) - HAY CONDITIONER U-JOINT ASSEMBLY (58) - ATTACHMENTS/HEADERS

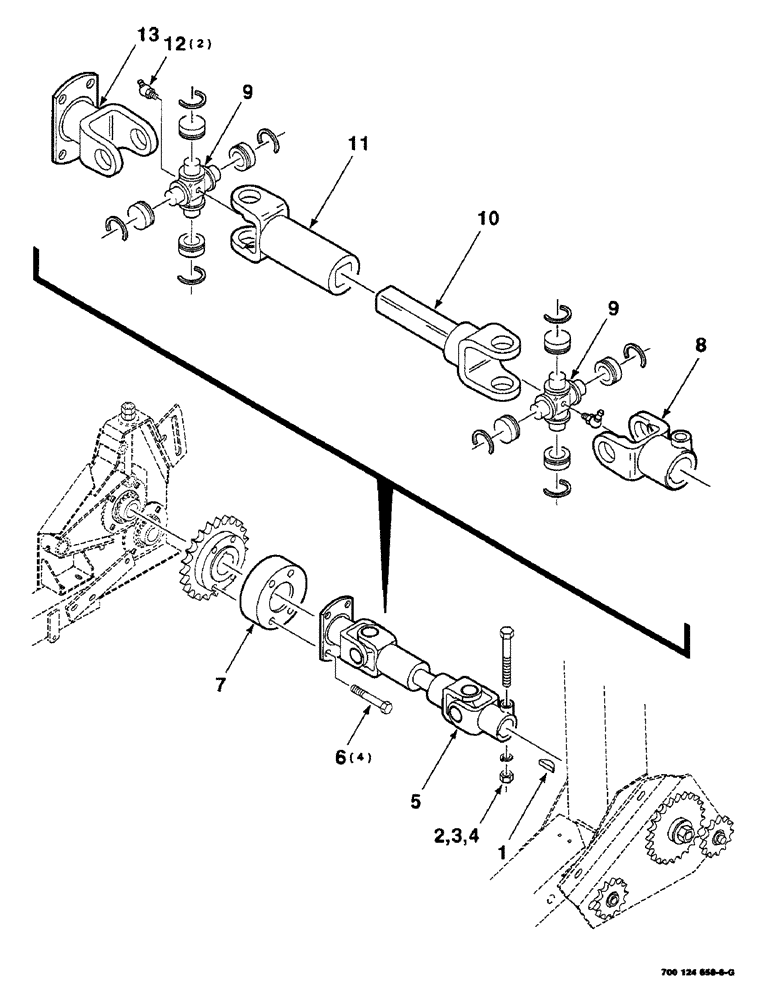

Схема запчастей Case IH 8830 - (9-044) - HAY CONDITIONER U-JOINT ASSEMBLY (58) - ATTACHMENTS/HEADERS
6
5
1
4
9
7
11
8
12
13
3
2
9
10

Артикул

Название

Примечание

Количество

1

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

1шт.

2

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

1шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

5

700710172

YOKE

U-JOINT ASSEMBLY - complete

1шт.

6

413-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

.438 X 2.25 UNC GR5 YZD

4шт.

7

700121858

SLEEVE

1шт.

8

757716

CLAMP

YOKE - clamp

1шт.

9

757443

U-JOINT SPIDER

CROSS AND BEARING KIT (Includes item 12)

2шт.

10

700710674

YOKE

- shafted

1шт.

11

700710672

YOKE

- female

1шт.

12

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

ZERK 1/8-27 X 65 DEGREES

2шт.

13

811554

YOKE

- flanged

1шт.

Выбрано товаров: 13
