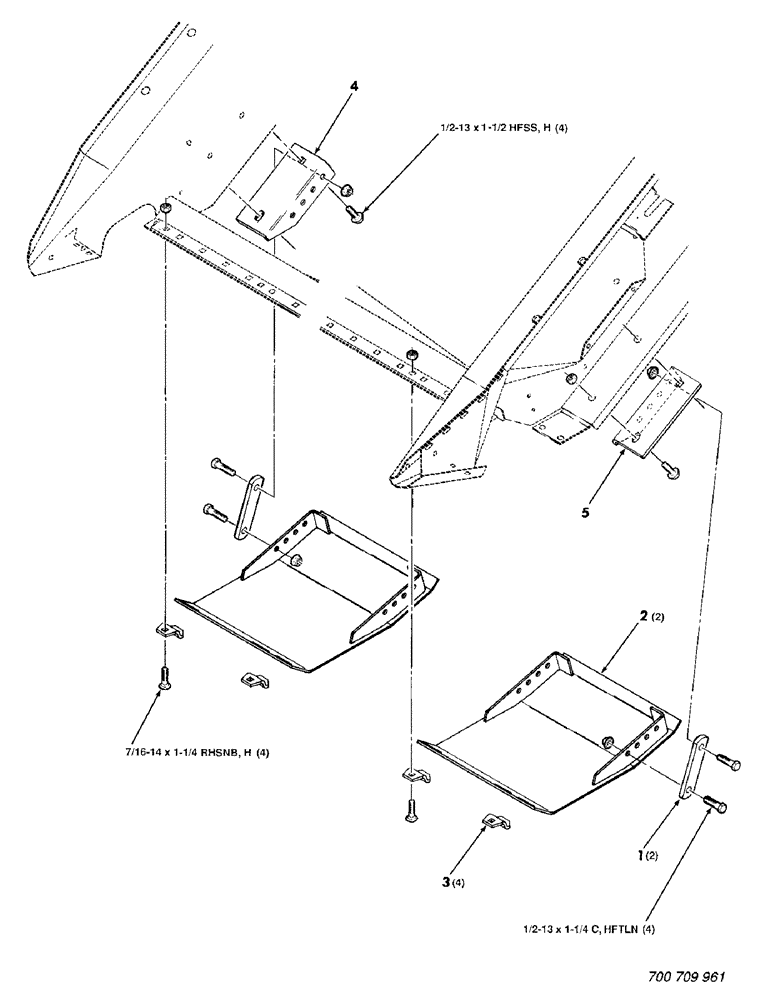

Запчасти Case IH 8830 (84) - SKID SHOE KIT (58) - ATTACHMENTS/HEADERS

HK60567

SKID/SHOE

SKID SHOE KIT COMPLETE

1шт.

1

6823173

STRAP

2шт.

2

700120763

SKID/SHOE

SHOE - SKID

2шт.

3

6823181

CLAMP

CLIP - SHOE

4шт.

4

700120762

SUPPORT

MOUNTING - support, right

1шт.

5

700120761

SUPPORT

MOUNTING - support, left

1шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 C

4шт.

7771280

BOLT,Hex Flange, 1/2" - 13 x 1 1/2", SPL

1/2-13 X 1-1/2 HFSS

4шт.

700476

BOLT,Round, 7/16" - 14 x 1 1/4", Grade 5

7/16-14 X 1-1/4 RHSNB

4шт.

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN

4шт.
