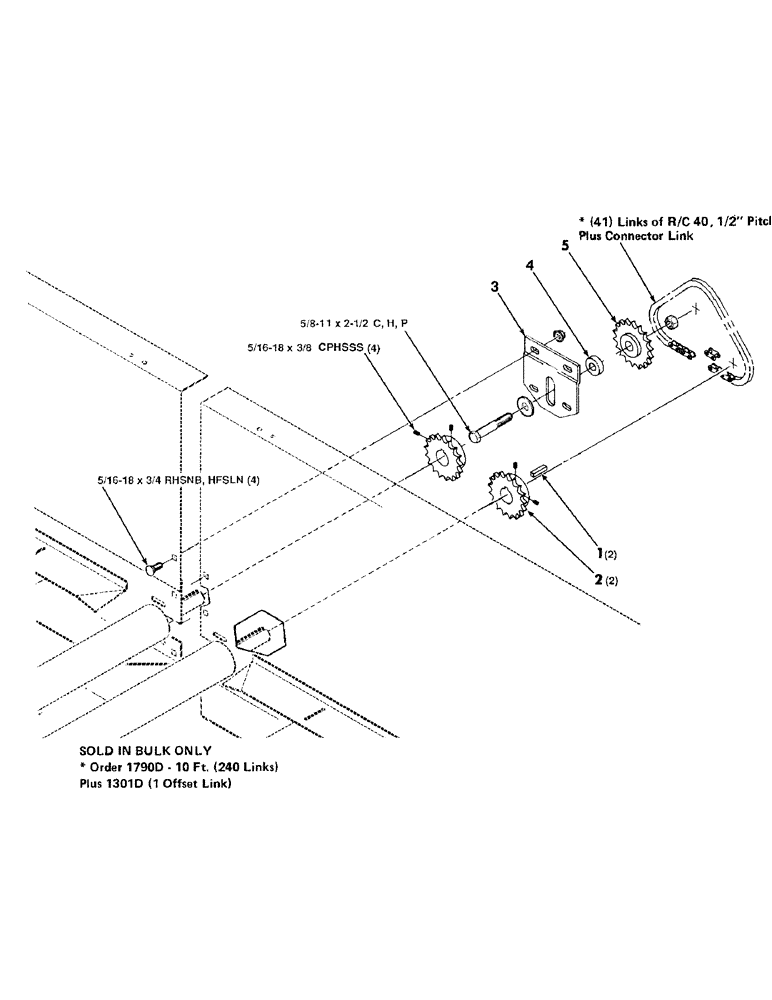

Запчасти Case IH 8830 (77) - END DELIVERY DEFLECTOR KIT, 21 FOOT HEADERS ONLY (58) - ATTACHMENTS/HEADERS

HK60566

END DELIVERY DEFLECTOR KIT (See pages 77-78)

1шт.

1

061069

KEY

2шт.

2

6824775

SPROCKET ASSY.

SPROCKET

2шт.

3

700119045

PLATE

1шт.

4

6156871

SPACER

1шт.

5

047977

SPROCKET - idler

1шт.

7701659

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 X 2-1/2 C

1шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

4шт.

704130

NUT,5/8"-11, G5

5/8-11 H

1шт.
