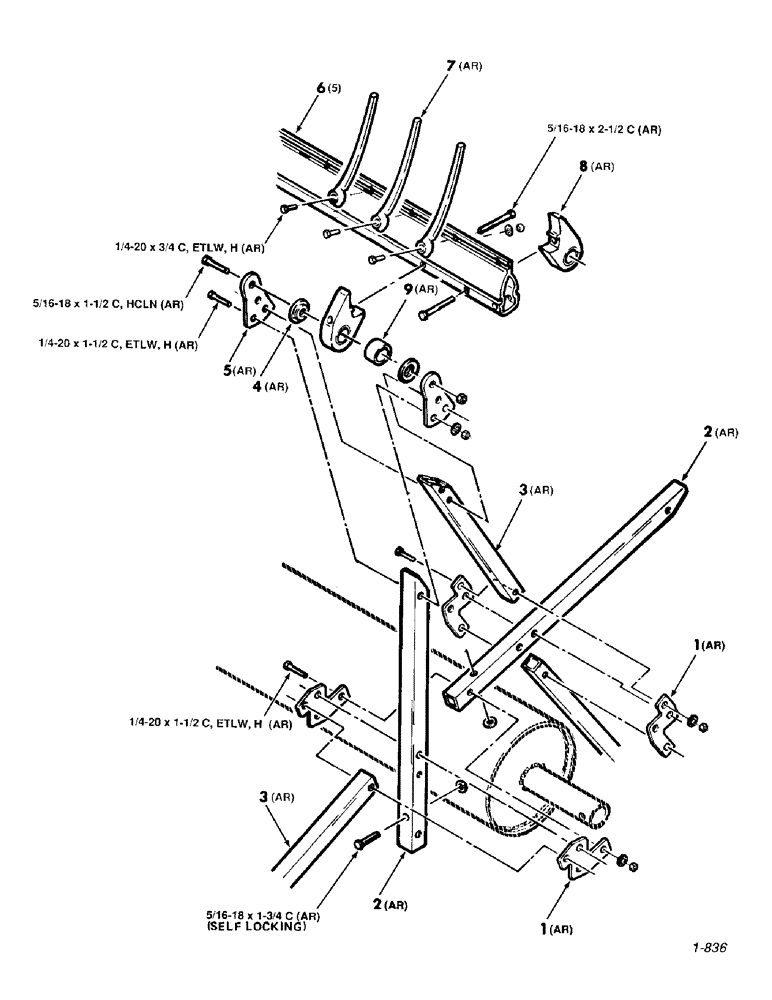

Запчасти Case IH 8830 (74) - REEL ASSEMBLY, PICKUP, 21 FOOT, 18 FOOT, 15 FOOT (58) - ATTACHMENTS/HEADERS

1

700708865

COVER PLATE

PLATE - inner (21 ft.)

30шт.

1

700708865

COVER PLATE

PLATE - inner (18 ft. & 15 ft.)

40шт.

2

700708870

ARM

- bat (21 ft.)

15шт.

2

700708870

ARM

- bat (18 ft.)

20шт.

2

700708870

ARM

- bat (15 ft.)

25шт.

3

700708871

ARM

BRACE - arm, bat (21 ft.)

15шт.

3

700708871

ARM

BRACE - arm, bat (18 ft.)

20шт.

3

700708871

ARM

BRACE - arm, bat (15 ft.)

25шт.

4

700708866

BUSHING

- shoulder (21 ft.)

50шт.

4

700708866

BUSHING

- shoulder (18 ft.)

60шт.

4

700708866

BUSHING

- shoulder (15 ft.)

70шт.

5

700708863

COVER PLATE

PLATE - tip (21 ft.)

30шт.

5

700708863

COVER PLATE

PLATE - tip (18 ft. & 15 ft.)

40шт.

6

700708885

BAT

(15 FT.)

5шт.

700708898

BAT

(18 FT.)

5шт.

700708899

BAT

(21 FT.)

5шт.

7

700708862

TINE

- plastic (21 ft.)

225шт.

7

700708862

TINE

- plastic (18 ft.)

270шт.

7

700708862

TINE

- plastic (15 ft.)

315шт.

8

700708861

HOLDER

- bearing (21 ft.)

35шт.

8

700708861

HOLDER

- bearing (18 ft. & 15 ft.)

40шт.

9

700708868

BUSHING

- bearing (21 ft.)

35шт.

9

700708868

BUSHING

- bearing (18 ft. & 15 ft.)

40шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 C (21 FT.)

225шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 C (18 FT.)

270шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 C (15 FT.)

315шт.

7771678

BOLT

1/4-20 X 1-1/2 C (21 FT.)

105шт.

7771678

BOLT

1/4-20 X 1-1/2 C (18 FT.)

140шт.

7771678

BOLT

1/4-20 X 1-1/2 C (15 FT.)

175шт.

7701717

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16-18 X 1-1/2 C (21 FT.)

35шт.

7701717

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16-18 X 1-1/2 C (18 FT.)

40шт.

7701717

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16-18 X 1-1/2 C (15 FT.)

45шт.

700708893

SCREW

5/16-18 X 1-3/4 C, self-tapping (21 ft. & 18 ft.)

15шт.

700708893

SCREW

5/16-18 X 1-3/4 C, self-tapping (15 ft.)

25шт.

700708902

SCREW

5/16-18 X 2-1/2 C, lock (21 ft. & 18 ft.)

35шт.

700708902

SCREW

5/16-18 X 2-1/2 C, lock (15 ft.)

45шт.

704619

SUPPORT

5/16-18 HCLN (21 FT.)

35шт.

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN (18 FT.)

40шт.

704619

SUPPORT

5/16-18 HCLN (15 FT.)

45шт.

076992

1/4 EXTERNAL TOOTH LOCK WASHER (21 FT.)

330шт.

076992

1/4 EXTERNAL TOOTH LOCK WASHER (18 FT.)

410шт.

076992

1/4 EXTERNAL TOOTH LOCK WASHER (15 FT.)

490шт.

700708890

WASHER

5/16 WASHER - special (21 ft.)

35шт.

700708890

WASHER

5/16 WASHER - special (18 ft.)

30шт.

700708890

WASHER

5/16 WASHER - special (15 ft.)

25шт.
