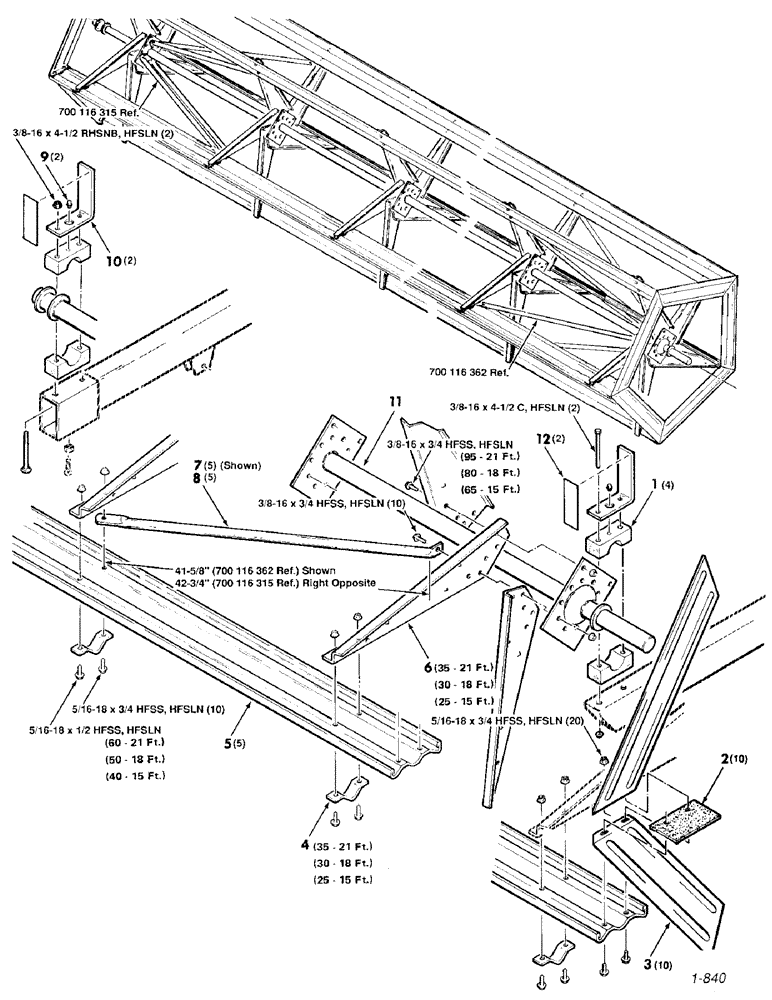

Запчасти Case IH 8830 (70) - REEL ASSEMBLY, 21 FOOT, 18 FOOT, 15 FOOT (58) - ATTACHMENTS/HEADERS

HK60455

REEL

ASSEMBLY COMPLETE (21 FT.)

1шт.

HK60558

REEL ASSEMBLY COMPLETE (18 FT.)

1шт.

HK60557

REEL ASSEMBLY COMPLETE (15 FT.)

1шт.

1

700707236

BEARING HALF

BEARING - wood, half

4шт.

2

700118408

FLAP

WEBBING - belt

10шт.

3

700118409

SHIELD

- end

10шт.

4

6825418

CLIP

- reinforcement (21 ft.)

35шт.

4

6825418

CLIP

- reinforcement (18 ft.)

30шт.

4

6825418

CLIP

- reinforcement (15 ft.)

25шт.

5

700708465

BAT

- reel (21 ft.)

5шт.

5

700709407

BAT

- reel (18 ft.)

5шт.

5

700709408

BAT

- reel (15 ft.)

5шт.

6

700116314

ARM

- reel (21 ft.)

35шт.

6

700116314

ARM

- reel (18 ft.)

30шт.

6

700116314

ARM

- reel (15 ft.)

25шт.

7

700116362

REINFORCEMENT,25.4 mm OD, 1058.5 mm Length

TUBE - brace, left

5шт.

8

700116315

ARM

TUBE - brace, right

5шт.

9

077321

7/16 ZERK

2шт.

10

700116313

BRACKET

CAP - bearing

2шт.

11

700118410

TUBE,6394 mm Length

- reel (21 ft.)

1шт.

11

700119533

TUBE,5480 mm Length

- reel (18 ft.)

1шт.

11

700119618

TUBE,4565 mm Length

- reel (15 ft.)

1шт.

12

878694

REFLECTOR

- amber

1шт.

701714

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

3/8-16 X 4-1/2 C

2шт.

700898

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5

3/8-16 X 4-1/2 RHSNB

2шт.

7703432

BOLT,Hex, Serr, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HFSS (21 FT.)

105шт.

7703432

BOLT,Hex, Serr, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HFSS (18 FT.)

90шт.

7703432

BOLT,Hex, Serr, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HFSS (15 FT.)

75шт.

703132

SERRATED SCREW

5/16-18 X 3/4 HFSS

30шт.

7771322

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16-18 X 1/2 HFSS (21 FT.)

60шт.

7771322

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16-18 X 1/2 HFSS (18 FT.)

50шт.

7771322

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16-18 X 1/2 HFSS (15 FT.)

40шт.

704213

NUT

3/8-16 HTLN

4шт.

704726

LOCK NUT,Flg, 5/16"-18

5/16-18 HFTLN (21 FT.)

90шт.

704726

LOCK NUT,Flg, 5/16"-18

5/16-18 HFTLN (18 FT.)

80шт.

704726

LOCK NUT,Flg, 5/16"-18

5/16-18 HFTLN (15 FT.)

70шт.

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN (21 FT.)

105шт.

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN (18 FT.)

90шт.

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN (15 FT.)

75шт.
