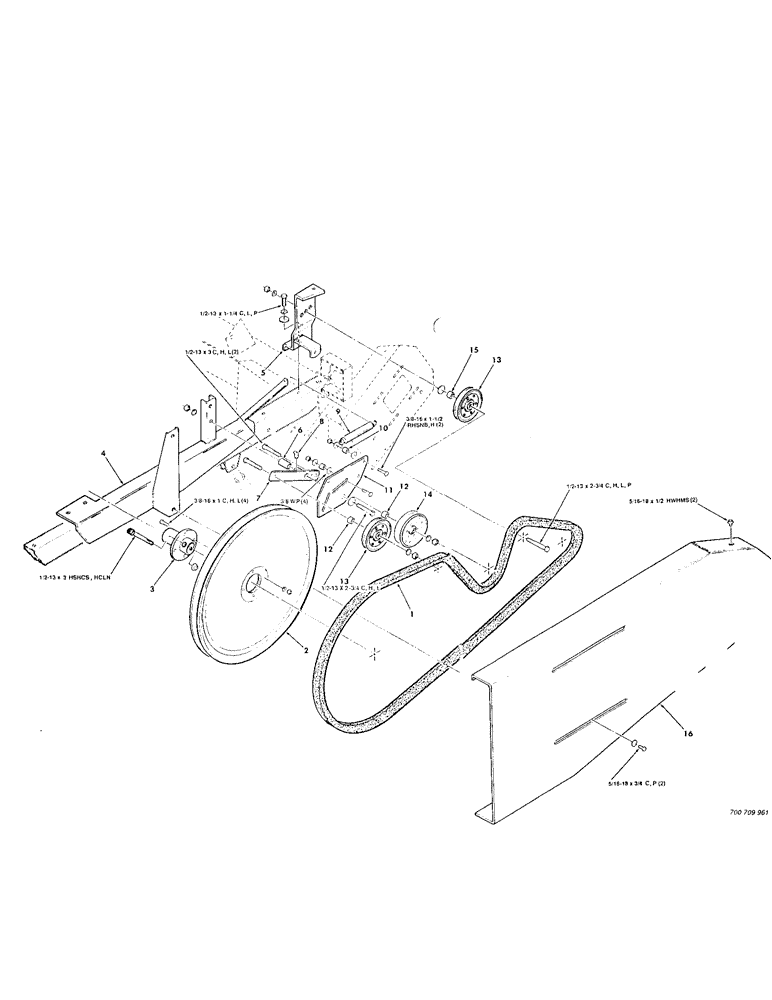

Запчасти Case IH 8830 (68) - REEL DRIVE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700709333

V-BELT,4673.60 mm L

1шт.

2

220822

SHEAVE

1шт.

3

700120982

HUB

- reel drive

1шт.

4

700119039

SUPPORT

- arm

1шт.

5

700119028

SUPPORT

1шт.

6

6839211

BUSHING

1шт.

7

6839518

BRACKET

- tightener

1шт.

8

077040

1/4-28 X 45 DEGREE ZERK

1шт.

9

758789

COIL SPRING

SPRING - extension

1шт.

10

6812952

SPACER

2шт.

11

700119070

SUPPORT

- idler

1шт.

12

173872

SPACER

2шт.

13

53553

SHAFT

V-IDLER

2шт.

14

53561

RIVET,Rd Hd, M3 x 10, Copper

IDLER - flat

1шт.

15

159970

SPACER

1шт.

16

700119630

SHIELD

1шт.

7703499

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 C

2шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

4шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 C

1шт.

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

2шт.

7702038

SCREW,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

2шт.

768036

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 X 1-1/2 RHSNB

2шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 X 1/2 HWHMS

2шт.

071159

1/2-13 X 3 HSHCS

1шт.

704288

LOCK NUT

1/2-13 HCLN

1шт.

700709603

WASHER,3/8"

3/8 WPW

4шт.
