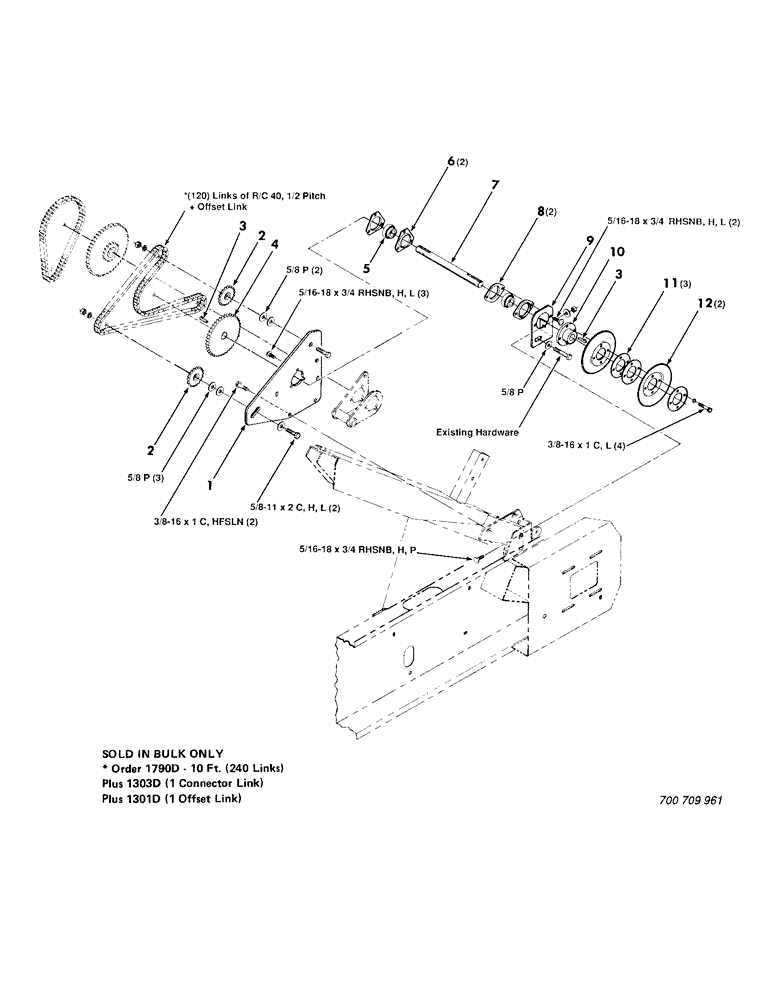

Запчасти Case IH 8830 (64) - REEL VARI-DRIVE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700119062

PLATE

- drive, reel

1шт.

2

047977

SPROCKET - 40P, 18 tooth

2шт.

3

061952

1/4 X 1/4 X 1-3/4 GIB KEY

2шт.

4

700119559

SPROCKET

- 40P, 40 tooth

1шт.

5

050302

BEARING - spherical

2шт.

6

051482

FLANGE - bearing

4шт.

7

700119047

SHAFT

JACKSHAFT

1шт.

8

050591

FLANGE - bearing

2шт.

9

700119041

SUPPORT

- vari-drive

1шт.

10

700119030

HUB

- vari-drive

1шт.

11

337774

SHIM

- spacer

3шт.

12

338244

SHEAVE

- half

2шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

6шт.

7701949

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 C

2шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

6шт.
