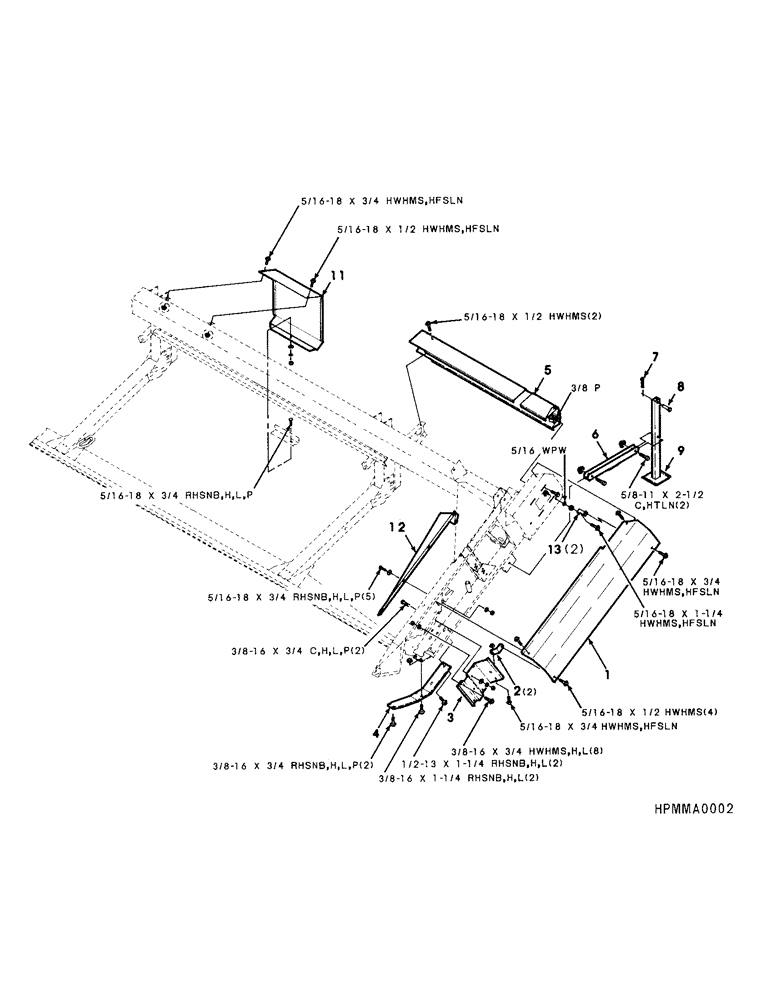

Запчасти Case IH 8830 (60) - SHIELDS AND STAND ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

1

700116796

SHIELD

- swaybar, left

1шт.

2

700116815

SUPPORT

ANGLE

1шт.

3

700116799

PLATE

- left

1шт.

4

700116801

SKID/SHOE

SHOE - skid

1шт.

5

700119152

SHIELD

- rear, left (21 ft.)

1шт.

700119625

SHIELD

- rear, left (18 ft.)

1шт.

700119029

SHIELD

- rear, left (15 ft.)

1шт.

6

700118508

STRAP

- brace

1шт.

7

062521

.125 X 2-1/2 HAIRPIN COTTER

1шт.

8

063495

5/8 X 2-1/2 CLEVIS PIN

1шт.

9

700118506

STAND

1шт.

10

700116816

SUPPORT

- brace

1шт.

11

700119557

SHIELD

- drive, draper left

1шт.

12

700116353

DEFLECTOR

- left

1шт.

13

6553804

SPACER

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 X 3/4 C

2шт.

703561

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8-11 X 2-3/4 C

2шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

6шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

2шт.

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 X 1-1/4 RHSNB

2шт.

7771363

BOLT,Hex Flange, 1/2" - 13 x 1 1/4", SPL

1/2-13 X 1-1/4 HFSS

2шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 X 1/2 HWHMS

7шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

3шт.

7883341

SCREW,Hex Washer, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

1шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHMS

4шт.

7771363

BOLT,Hex Flange, 1/2" - 13 x 1 1/4", SPL

1/2-13 X 1-1/4 HFSS

2шт.

704924

NUT

5/8-11 HTLN

2шт.
