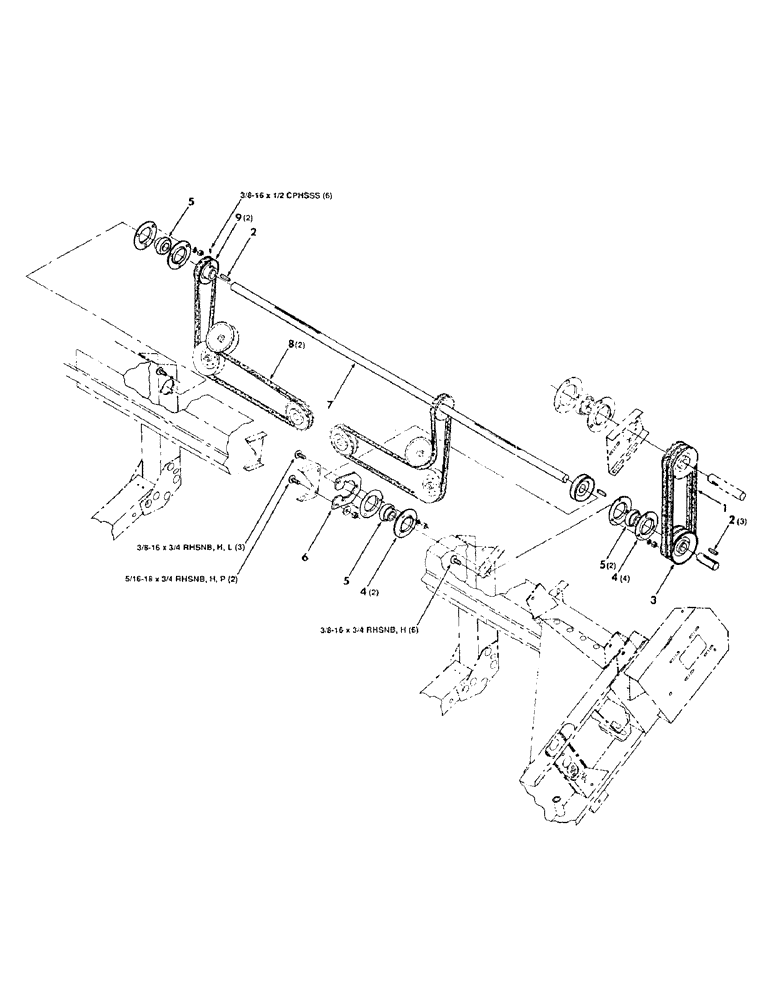

Запчасти Case IH 8830 (54) - DRAPER DRIVE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700708968

SET OF BELTS,787.40 mm L

2 Matched, V-Belt 787.40 mm L

1шт.

2

061077

1/4 X 1/4 X 1-1/4 KEY

3шт.

3

700709513

PULLEY

SHEAVE - double

1шт.

4

050534

FLANGE - bearing

6шт.

5

700708094

SPHERICAL BEARING,1.25" ID x 62 mm OD x 35.71 mm

BEARING - spherical

3шт.

6

700119554

SUPPORT

MOUNTING - bearing

1шт.

7

700119054

SHAFT

- drive, draper

1шт.

8

700709489

V-BELT,1879.60 mm L

2шт.

9

700709136

PULLEY

SHEAVE

2шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

11шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

2шт.

069419

3/8-16 X 1/2 CPHSSS

6шт.
