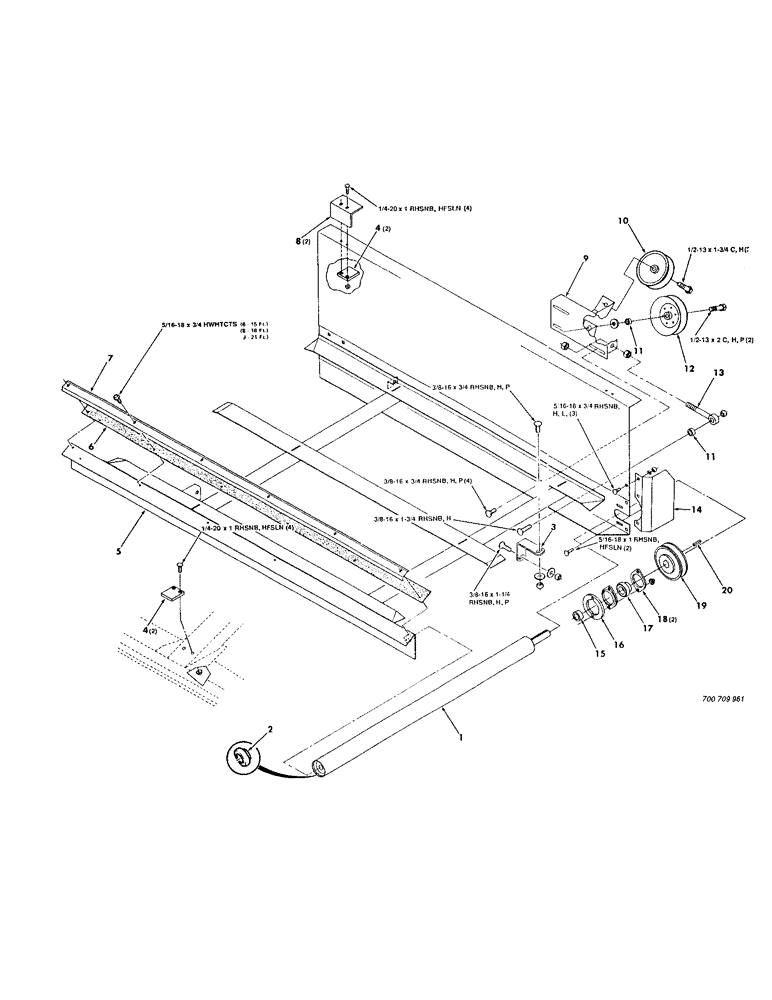

Запчасти Case IH 8830 (48) - DRAPER FRAME AND CENTER ROLLER ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

1

700119553

ROLLER

- drive, center

1шт.

2

050617

BEARING - sealed

1шт.

3

700119555

ANGLE

- stop, draper

1шт.

4

700115400

BAR PLATE

BEARING - slide

1шт.

5

700119543

FRAME

- draper, right (15 ft.)

1шт.

700119873

FRAME

- draper, right (18 ft.)

1шт.

700118401

FRAME

- draper, right (21 ft.)

1шт.

6

700119886

GUARD

- draper (15 ft.)

1шт.

700119888

GUARD

- draper (18 ft.)

1шт.

700119890

GUARD

- draper (21 ft.)

1шт.

7

700119885

RETAINER

- draper (15 ft.)

1шт.

700119887

RETAINER

- draper (18 ft.)

1шт.

700119889

RETAINER

- draper (21 ft.)

1шт.

8

700118524

BRACKET

ANGLE - reinforcement

2шт.

9

700119044

SUPPORT

- idler, tightener

1шт.

10

53561

RIVET,Rd Hd, M3 x 10, Copper

IDLER - flat

1шт.

11

6500433

BUSHING

SPACER

2шт.

12

700709514

PULLEY

V-IDLER

1шт.

13

700110578

ROD

EYEBOLT

1шт.

14

6824080

SHIELD

- dirve, right

1шт.

15

483529

SPACER

1шт.

16

425306

SPACER

- collar

1шт.

17

710301

SPHERICAL BEARING

BEARING - spherical

1шт.

18

050591

FLANGE - bearing

2шт.

19

053470

PULLEY - adjustable

1шт.

20

061077

1/4 X 1/4 X 1-1/4 KEY

1шт.

703983

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 C

1шт.

7701675

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 C

1шт.

7770167

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

1/4-20 X 1 RHSNB

8шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

3шт.

7700578

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

5/16-18 X 1 RHSNB

2шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

5шт.

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 X 1-1/4 RHSNB

1шт.

068767

3/8-16 X 1-3/4 RHSNB

1шт.

701953

SELF-TAP SCREW

5/16-18 X 3/4 HWHTCTS (15 ft.)

6шт.

701953

SELF-TAP SCREW

5/16-18 X 3/4 HWHTCTS (18 ft.)

8шт.

701953

SELF-TAP SCREW

5/16-18 X 3/4 HWHTCTS (21 ft.)

9шт.
