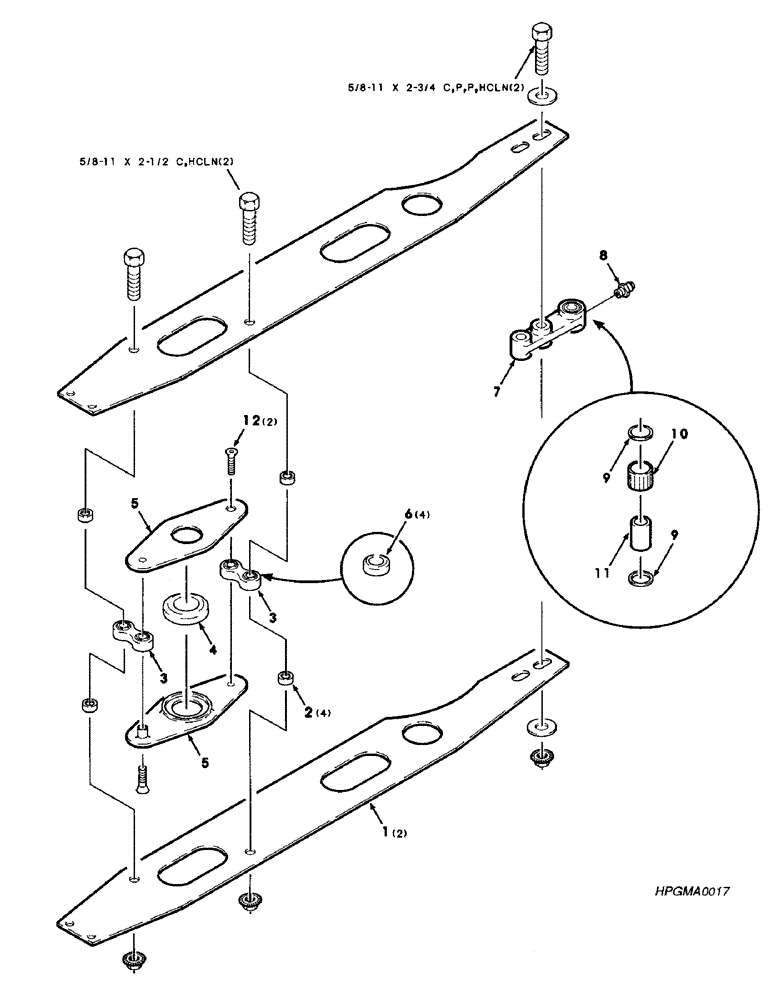

Запчасти Case IH 8830 (46) - SWAYBAR ASSEMBLY, RIGHT AND LEFT (58) - ATTACHMENTS/HEADERS

1

700119906

PLATE

- swaybar

2шт.

2

700116821

SPACER

4шт.

3

700116819

LINK

ASSEMBLY - pivot

1шт.

4

8050080

BEARING, ROLLER, CYL,34.93 mm ID x 72 mm OD x 25.4 mm

- cylindrical

1шт.

5

700116818

PLATE

- pivot

2шт.

6

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

- cylindrical

4шт.

7

700114625

LINK

ASSEMBLY - upper

1шт.

8

77016

LUBE NIPPLE

1/4-28 ZERK

1шт.

9

697494R91

OIL SEAL

SEAL

2шт.

10

8050536

NEEDLE BEARING

- needle

1шт.

11

700114599

BUSHING,16.27mm ID x 25.55mm OD x 38mm L

- needle

1шт.

12

700707135

HEX SOC SCREW

1/2-13 X 1-1/4 HSFCHCS

2шт.

7701659

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 X 2-1/2 C

2шт.

703561

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8-11 X 2-3/4 C

2шт.

230-42110

LOCK NUT,5/8"-11, GA

5/8-11 HCLN

4шт.
