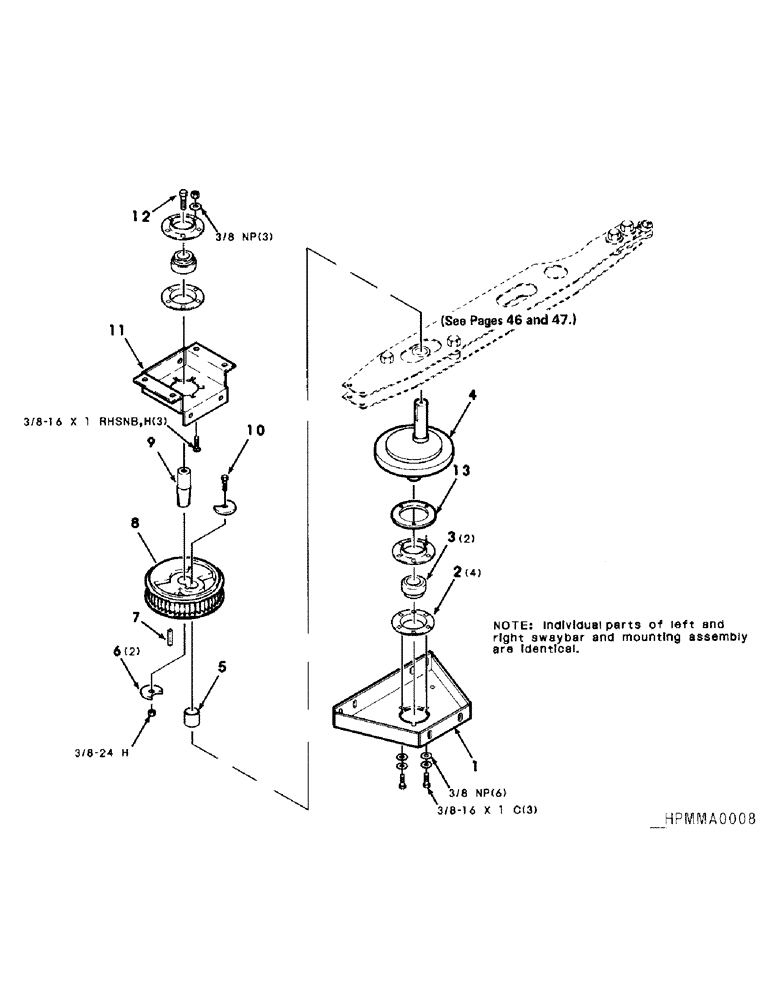

Запчасти Case IH 8830 (44) - PITMAN ASSEMBLY, RIGHT AND LEFT (58) - ATTACHMENTS/HEADERS

1

700120702

SUPPORT

MOUNTING - bearing, lower

1шт.

2

825620C1

RETAINER

- bearing

4шт.

3

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING - spherical

2шт.

4

700120699

ECCENTRIC

CRANK - swaybar

1шт.

5

700115413

SPACER

1шт.

6

700116748

WASHER

- Pacman

2шт.

7

061556

5/16 X 5/16 X 1-3/4 KEY

1шт.

8

700707582

FLYWHEEL

- drive, cog

1шт.

9

700116719

SHAFT

- flywheel

1шт.

10

7884059

BOLT,Hex, 3/8" - 24 x 1", Gr 8

3/8-24 X 1 C GRD 8

1шт.

11

700120701

SUPPORT

MOUNTING - bearing, upper

1шт.

12

700707631

SCREW

3/8-24 X 5-1/2 C GRD 8

1шт.

13

700120722

RING

- flange

1шт.

700047

BOLT

3/8-16 X 1 RHSNB

3шт.

700708502

NUT

3/8-24 H GRD 5

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

2шт.

705657

WASHER

3/8 NP

9шт.
