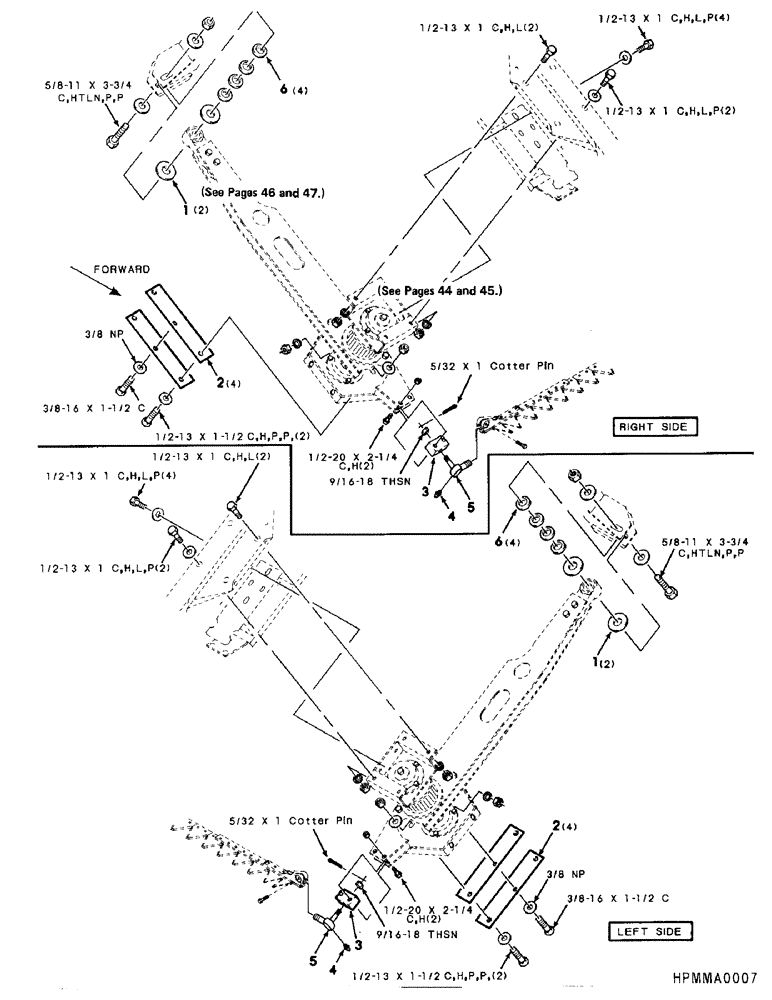

Запчасти Case IH 8830 (42) - SWAYBAR MOUNTING ASSEMBLY, RIGHT AND LEFT (58) - ATTACHMENTS/HEADERS

1

6855423

WASHER

4шт.

2

700120721

SHIM

8шт.

3

700116824

BLOCK

- sickle

2шт.

4

77115

FITTING

1/8 X 90 DEGREE ZERK

2шт.

5

8045650

BALL JOINT

SOCKET ASSEMBLY

2шт.

6

76653

WASHER

5/8 X 14 GAUGE MACHINERY BUSHING

8шт.

703603

SCREW

3/8-16 X 1-1/2 C

4шт.

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 X 1 C

16шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 C

4шт.

700709548

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

1/2-20 X 2-1/4 C

4шт.

703355

BOLT,Hex, 5/8" - 11 x 3 3/4", Gr 5

5/8-11 X 3-3/4 C

2шт.

7775166

SLOTTED NUT,9/16"-18, G5, Thk

9/16-18 THSN

2шт.

704924

NUT

5/8-11 HTLN

2шт.

705657

WASHER

3/8 NP

2шт.
