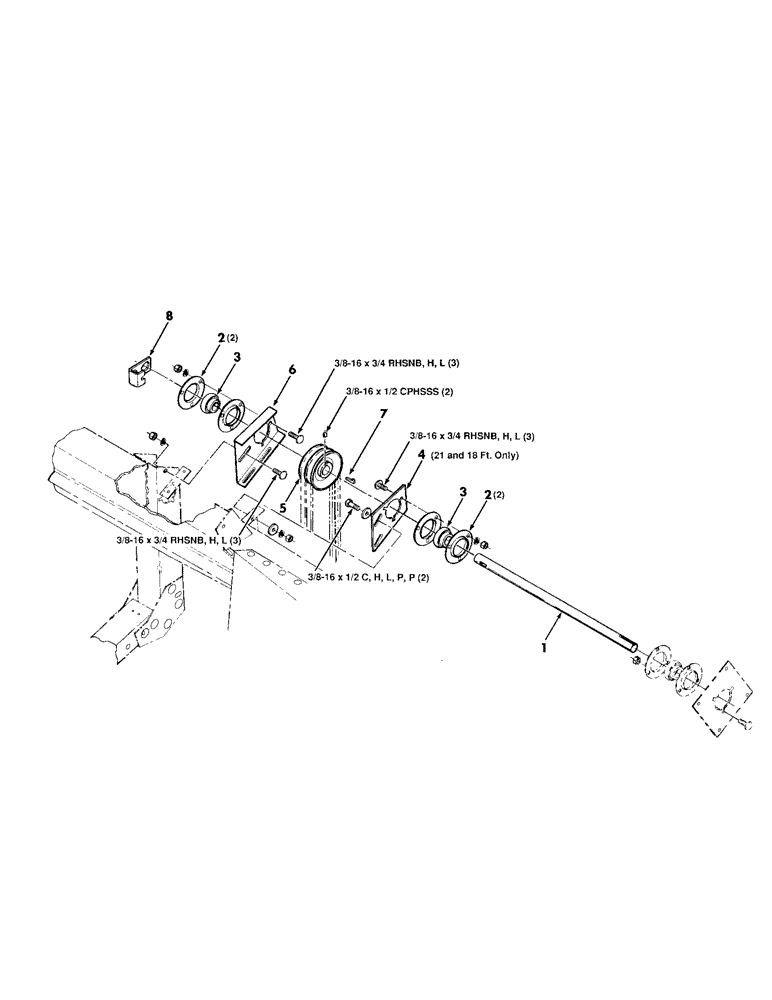

Запчасти Case IH 8830 (38) - SICKLE DRIVE ASSEMBLY, PRIMARY, LEFT (58) - ATTACHMENTS/HEADERS

1

700119570

SHAFT

- left, swaybar (15 ft.)

1шт.

700119870

SHAFT

- left, swaybar (18 ft.)

1шт.

700119053

SHAFT

- left, swaybar (21 ft.)

1шт.

2

050534

FLANGE (15 ft.)

2шт.

050534

FLANGE (18 and 21 ft.)

4шт.

3

700708094

SPHERICAL BEARING,1.25" ID x 62 mm OD x 35.71 mm

BEARING - spherical (15 ft.)

1шт.

700708094

SPHERICAL BEARING,1.25" ID x 62 mm OD x 35.71 mm

BEARING - spherical (18 and 21 ft.)

2шт.

4

700116826

PLATE

- bearing (18 and 21 ft.)

1шт.

5

700118890

PULLEY

SHEAVE - double

1шт.

6

700119046

SUPPORT

- bearing

1шт.

7

061077

1/4 X 1/4 X 1-1/4 KEY

1шт.

8

700121367

BAR PLATE

RETAINER - left

1шт.

772392

BOLT

3/8-16 X 1/2 C (18 and 21 ft.)

2шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB (15 ft.)

6шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB (18 and 21 ft.)

9шт.

069419

3/8-16 X 1/2 CPHSSS

2шт.
