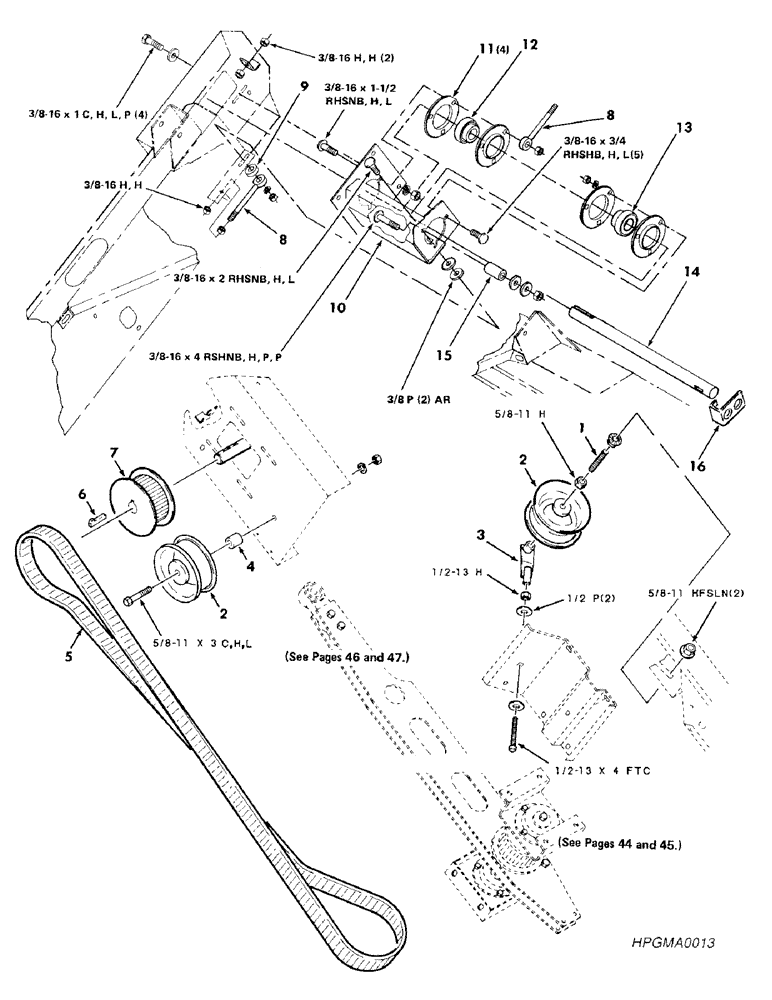

Запчасти Case IH 8830 (36) - SICKLE DRIVE, RIGHT, 15 AND 18 FOOT (58) - ATTACHMENTS/HEADERS

1

700116337

STUD

1шт.

2

853473

PULLEY

IDLER - flat

2шт.

3

700116722

SUPPORT

BRACKET - idler

1шт.

4

6888960

BUSHING

SPACER

1шт.

5

700707586

BELT, TRANSMISSION,30.00 mm W

Cog 30.00 mm W

1шт.

6

761213

KEY

5/16 X 5/16 X 1-1/2 GIB KEY

1шт.

7

700707583

SPROCKET

- cog

1шт.

8

700110578

ROD

EYEBOLT - tightener

1шт.

9

214114

SPACER

1шт.

10

700119572

SUPPORT

1шт.

11

050534

FLANGE - bearing

4шт.

12

050336

BEARING - spherical

1шт.

13

700708094

SPHERICAL BEARING,1.25" ID x 62 mm OD x 35.71 mm

BEARING - spherical

1шт.

14

700119571

SHAFT

- right (15 ft.)

1шт.

700119871

SHAFT

- right (18 ft.)

1шт.

15

700109060

TUBE,15.88 mm OD, 68 mm Length

SPACER

1шт.

16

700116701

RETAINER CUP

RETAINER - right

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

4шт.

7701683

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 X 3 C

1шт.

873455

SCREW,Hex, 1/2" - 13 x 4", Gr 5, Full Thd

1/2-13 X 4 FTC

1шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

5шт.

768036

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 X 1-1/2 RHSNB

1шт.

7700073

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

3/8-16 X 2 RHSNB

1шт.

7770506

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 RHSNB

1шт.
