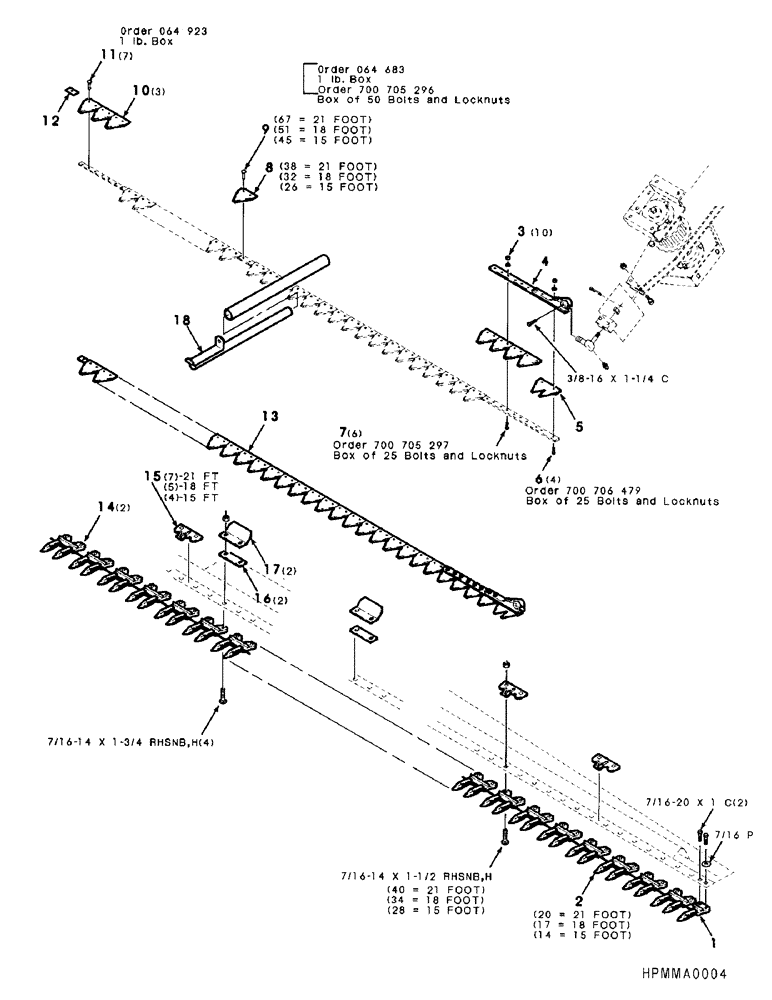

Запчасти Case IH 8830 (32) - SICKLE AND GUARD ASSEMBLY, LEFT, 21 FOOT, 18 FOOT, 15 FOOT (58) - ATTACHMENTS/HEADERS

1

049395

FINGER

GUARD - single, left

1шт.

2

748178

GUARD

- double (21 foot)

20шт.

Packaged 25 per bolt

1шт.

748178

GUARD

- double (18 foot)

17шт.

Packaged 25 per bolt

1шт.

748178

GUARD

- double (15 foot)

14шт.

Packaged 25 per bolt

1шт.

3

700705521

RIVET

#12-24 LOCKNUT (21 foot)

79шт.

700705521

RIVET

#12-24 LOCKNUT (18 foot)

67шт.

700705521

RIVET

#12-24 LOCKNUT (15 foot)

55шт.

4

700111003

KNIFE HEAD

HEAD - sickle

1шт.

5

700705462

KNIFE SECTION

SECTION - end, left

1шт.

6

700705520

RIVET

#12-24 X 1-1/4 BOLT (Order no. 700706479, box of 25 bolts and locknuts)

4шт.

7

700705519

RIVET

#12-24 X 1 BOLT (Order no. 700706297, box of 25 bolts and locknuts)

6шт.

8

049254

KNIFE SECTION

SICKLE SECTION - top serrated (21 foot)

38шт.

Packaged 25 per bolt

1шт.

049254

KNIFE SECTION

SICKLE SECTION - top serrated (18 foot)

32шт.

Packaged 25 per bolt

1шт.

049254

KNIFE SECTION

SICKLE SECTION - top serrated (15 foot)

26шт.

Packaged 25 per bolt

1шт.

049262

KNIFE SECTION

SICKLE SECTION - smooth (21 foot)

38шт.

Packaged 25 per bolt

1шт.

049262

KNIFE SECTION

SICKLE SECTION - smooth (18 foot)

32шт.

Packaged 25 per bolt

1шт.

049262

KNIFE SECTION

SICKLE SECTION - smooth (15 foot)

26шт.

Packaged 25 per bolt

1шт.

9

064048

#5-1/2 X 9/16 OVAL HEAD RIVET (Order no. 064683 1 lb box) (21 foot)

67шт.

064048

#5-1/2 X 9/16 OVAL HEAD RIVET (Order no. 064683 1 lb box) (18 foot)

51шт.

064048

#5-1/2 X 9/16 OVAL HEAD RIVET (Order no. 064683 1 lb box) (15 foot)

45шт.

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT (Order (2) no. 700705296 box of 50 bolts and locknuts) (2 boxes) (21, 18 foot)

1шт.

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT (Order (2) no. 700705296 box of 50 bolts and locknuts) (2 boxes) (15 foot)

1шт.

10

51200279

KNIFE SECTION

SECTION - sickle, end

3шт.

11

064469

#5-1/2 X 7/16 RIVET (Order no. 064923 1 lb. box)

7шт.

12

6821052

SHIM

- end, wear

1шт.

13

700709650

KNIFE

SICKLE WITH HEAD, top serrated (Bolt-on) (21 foot)

1шт.

700709648

KNIFE

SICKLE WITH HEAD, top serrated (Bolt-on) (18 foot)

1шт.

700709646

CUTTERBAR

SICKLE WITH HEAD, top serrated (Bolt-on) (15 foot)

1шт.

700118417

KNIFE

SICKLE WITH HEAD, top serrated (Riveted) (21 foot)

1шт.

700119589

KNIFE

SICKLE WITH HEAD, top serrated (Riveted) (18 foot)

1шт.

700119020

KNIFE

SICKLE WITH HEAD, top serrated (Riveted) (15 foot)

1шт.

14

748160

GUARD

- double, center

2шт.

15

700111204

CLIP

HOLDDOWN (21 foot)

6шт.

Packaged 25 per bolt

1шт.

700111204

CLIP

HOLDDOWN (18 foot)

5шт.

Packaged 25 per bolt

1шт.

700111204

CLIP

HOLDDOWN (15 foot)

4шт.

Packaged 25 per bolt

1шт.

16

6821268

SHIM

4шт.

17

700116829

BRACKET

- holddown

2шт.

18

6135081

GUARD

STRAIGHTENER, guard (Extra eq.)

1шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 X 1-1/4 C

1шт.

771501

BOLT,Hex, 7/16" - 20 x 1", Gr 5

7/16-20 X 1 C

2шт.

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB (21 foot)

40шт.

700112

CONCAVE

7/16-14 X 1-1/2 RHSNB (18 foot)

34шт.

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB (15 foot)

28шт.

700237

SQUARE BOLT

7/16-14 X 1-3/4 RHSNB

4шт.

704080

NUT,7/16"-14, G5

7/16-14 H (21 foot)

44шт.

704080

NUT,7/16"-14, G5

7/16-14 H (18 foot)

38шт.

704080

NUT,7/16"-14, G5

7/16-14 H (15 foot)

32шт.
