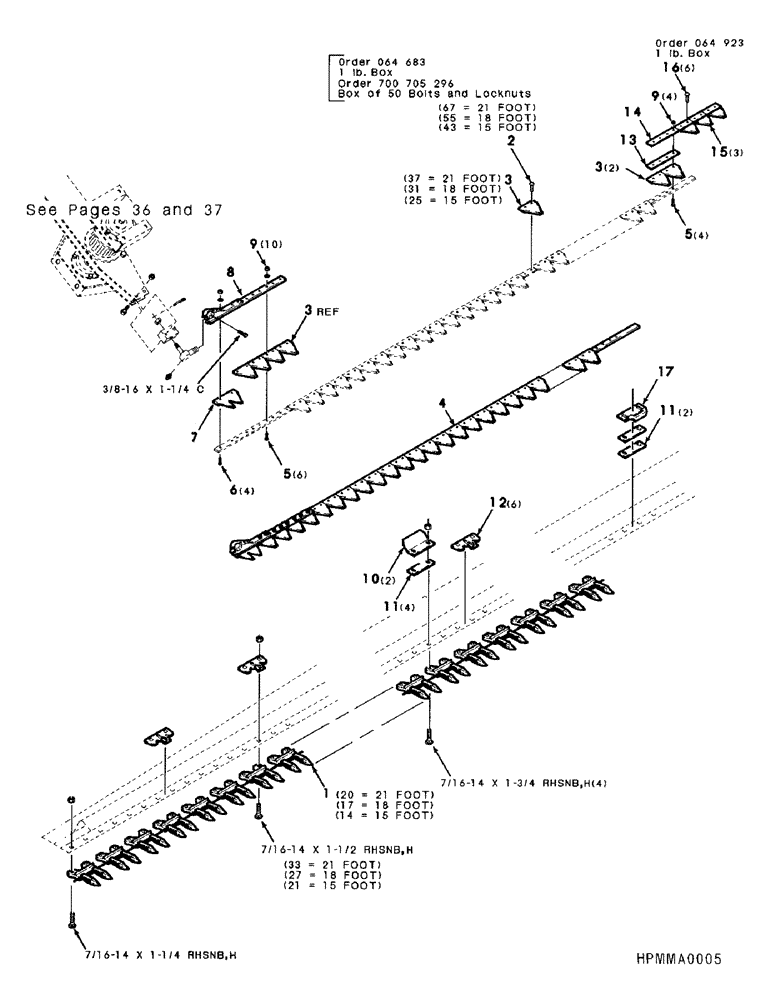

Запчасти Case IH 8830 (30) - SICKLE AND GUARD ASSEMBLY, RIGHT, 21 FOOT, 18 FOOT, 15 FOOT (58) - ATTACHMENTS/HEADERS

1

748178

GUARD

- double (21 foot)

20шт.

Packaged 25 per bolt

1шт.

748178

GUARD

- double (18 foot)

17шт.

Packaged 25 per bolt

1шт.

748178

GUARD

- double (15 foot)

14шт.

Packaged 25 per bolt

1шт.

2

064048

#5-1/2 X 9/16 OVAL HEAD RIVET (Order no. 064683 1 lb. box) (21 foot)

67шт.

064048

#5-1/2 X 9/16 OVAL HEAD RIVET (Order no. 064683 1 lb. box) (18 foot)

55шт.

064048

#5-1/2 X 9/16 OVAL HEAD RIVET (Order no. 064683 1 lb. box) (15 foot)

43шт.

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT (Order (2) no. 700705296 box of 50 bolts and locknuts) (2 boxes) (21, 18 foot)

1шт.

700705296

BOLT AND NUT

#12-24 X 5/8 bolt (Order (2) no. 700705296 box of 50 bolts and locknuts) (3 boxes) (15 foot)

1шт.

3

049254

KNIFE SECTION

SICKLE SECTION - top serrated (21 foot)

37шт.

Packaged 25 per bolt

1шт.

049254

KNIFE SECTION

SICKLE SECTION - top serrated (18 foot)

31шт.

Packaged 25 per bolt

1шт.

049254

KNIFE SECTION

SICKLE SECTION - top serrated (15 foot)

25шт.

Packaged 25 per bolt

1шт.

049262

KNIFE SECTION

SICKLE SECTION - smooth (21 foot)

37шт.

Packaged 25 per bolt

1шт.

049262

KNIFE SECTION

SICKLE SECTION - smooth (18 foot)

31шт.

Packaged 25 per bolt

1шт.

049262

KNIFE SECTION

SICKLE SECTION - smooth (15 foot)

25шт.

Packaged 25 per bolt

1шт.

4

700709651

KNIFE

SICKLE WITH HEAD - top serrated (Bolt-on) (21 foot)

1шт.

700709649

KNIFE

SICKLE WITH HEAD - top serrated (Bolt-on) (18 foot)

1шт.

700709647

KNIFE

SICKLE WITH HEAD - top serrated (Bolt-on) (15 foot)

1шт.

700118418

KNIFE

SICKLE WITH HEAD - top serrated (Riveted) (21 foot)

1шт.

700119590

KNIFE

SICKLE WITH HEAD - top serrated (Riveted) (18 foot)

1шт.

700119021

KNIFE

SICKLE WITH HEAD - top serrated (Riveted) (15 foot)

1шт.

5

700705519

RIVET

#12-24 X 1 BOLT (Order no. 700705297, box of 25 bolts and locknuts)

10шт.

6

700705520

RIVET

#12-24 X 1 BOLT (Order no. 700706479, box of 25 bolts and locknuts)

4шт.

7

700705463

KNIFE SECTION

SECTION - end, right

1шт.

8

700116709

KNIFE HEAD

HEAD - sickle

1шт.

9

700705521

RIVET

#12-24 LOCKNUT (21 foot)

77шт.

700705521

RIVET

#12-24 LOCKNUT (18 foot)

65шт.

700705521

RIVET

#12-24 LOCKNUT (15 foot)

53шт.

10

700116829

BRACKET

- holddown

2шт.

11

6821268

SHIM

6шт.

12

700111204

CLIP

HOLDDOWN (21 foot)

6шт.

700111204

CLIP

HOLDDOWN (18 foot)

5шт.

700111204

CLIP

HOLDDOWN (15 foot)

4шт.

13

700116713

SPACER

- bar, sickle

1шт.

14

700709645

KNIFE

EXTENSION - sickle

1шт.

15

51200281

KNIFE SECTION

SECTION - sickle, extension

3шт.

16

064469

#5-1/2 X 7/16 RIVET (Order no. 063923 1 lb. box)

6шт.

17

6832703

CLAMP BRACKET

HOLDDOWN - end

1шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 X 1-1/4 C

1шт.

700476

BOLT,Round, 7/16" - 14 x 1 1/4", Grade 5

7/16-14 X 1-1/4 RHSNB

1шт.

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB (21 foot)

33шт.

700112

CONCAVE

7/16-14 X 1-1/2 RHSNB (18 foot)

29шт.

700112

CONCAVE

7/16-14 X 1-1/2 RHSNB (15 foot)

21шт.

700237

SQUARE BOLT

7/16-14 X 1-3/4 RHSNB

6шт.

704080

NUT,7/16"-14, G5

7/16-14 H (21 foot)

40шт.

704080

NUT,7/16"-14, G5

7/16-14 H (18 foot)

34шт.

704080

NUT,7/16"-14, G5

7/16-14 H (15 foot)

28шт.
