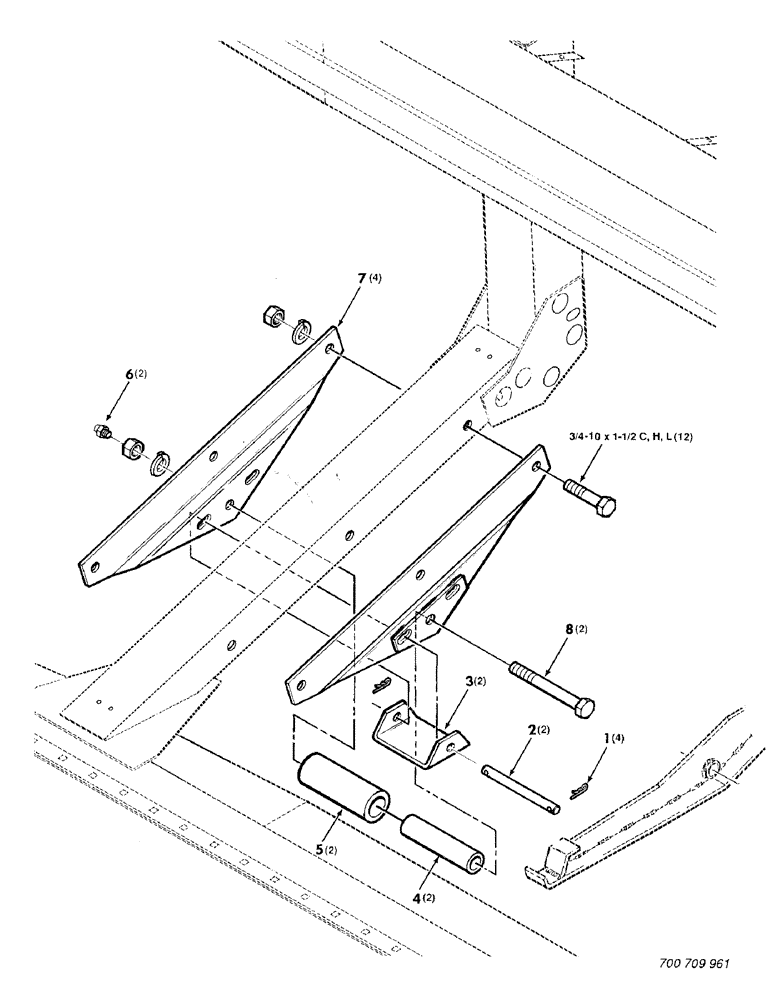

Запчасти Case IH 8830 (22) - HEADER SUPPORT PIVOT ASSEMBLY, LOWER (58) - ATTACHMENTS/HEADERS

1

062349

.148 X 2-3/4 HAIRPIN COTTER

4шт.

2

700119558

PIN

- safety

2шт.

3

700119071

SUPPORT

CHANNEL - safety

2шт.

4

700116884

BUSHING

- inner

2шт.

5

6185508

BUSHING

HUB - outer

2шт.

6

077057

1/4-28 X 90 DEGREE ZERK

2шт.

7

700119063

SUPPORT

- lower, push arm

4шт.

8

700110562

SCREW

3/4-10 X 6-1/2 CAP SCREW, special

2шт.

7703572

BOLT,Hex 3/4" - 10 x 1 1/2", Gr 5

3/4-10 X 1-1/2 C

12шт.
