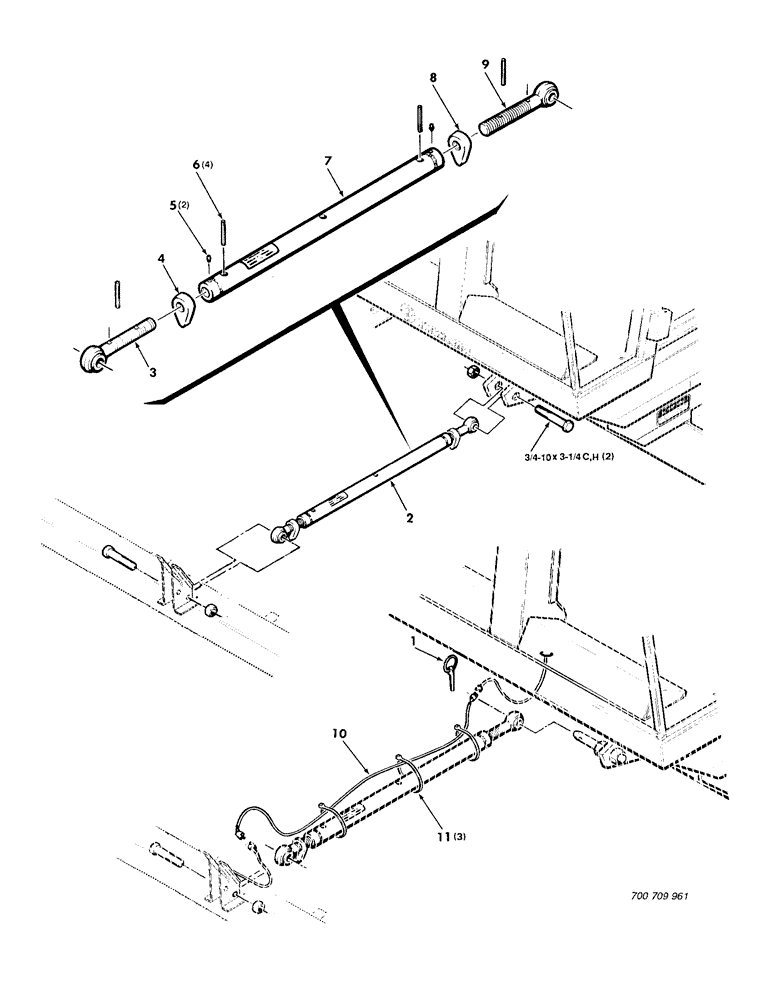

Запчасти Case IH 8830 (20) - HEADER SUPPORT LINKAGE ASSEMBLY, UPPER (58) - ATTACHMENTS/HEADERS

1

762203

PIN

7/16 X 1-1/2 LINCH PIN

1шт.

2

700119760

TIE-ROD

LINK - adjustable upper

1шт.

3

700117693

TIE-ROD

END - link (RH thread)

1шт.

4

700117684

HANDLE

LOCK - link (RH thread)

1шт.

5

077016

1/4-28 ZERK

2шт.

6

063362

3/16 X 1-1/4 SLOTTED SPRING PIN

4шт.

7

700116671

TUBE

- center

1шт.

8

700117683

HANDLE

LOCK - link (LH thread)

1шт.

9

700117692

TIE-ROD

END - link (LH thread)

1шт.

10

700706637

FLEXIBLE HOSE

WIRE - electrical

1шт.

11

722470

MOUNTING CLIP

TIE - cable

3шт.

7701766

SCREW,Hex, 3/4" - 10 x 3 1/4", Gr 5

3/4-10 X 3-1/4 C

2шт.

700119760, link/a components have 1 1/8" threads. The link/a with 1" threads is 700110792. The 1" link/a and all it's component parts sub to the 1 1/8" assembly. -lp-

1шт.
