(9-14) - SICKLE HEAD GUARD KIT, 700127781 SICKLE HEAD GUARD KIT COMPLETE

Запчасти Case IH 8820 (9-14) - SICKLE HEAD GUARD KIT, 700127781 SICKLE HEAD GUARD KIT COMPLETE (09) - CHASSIS

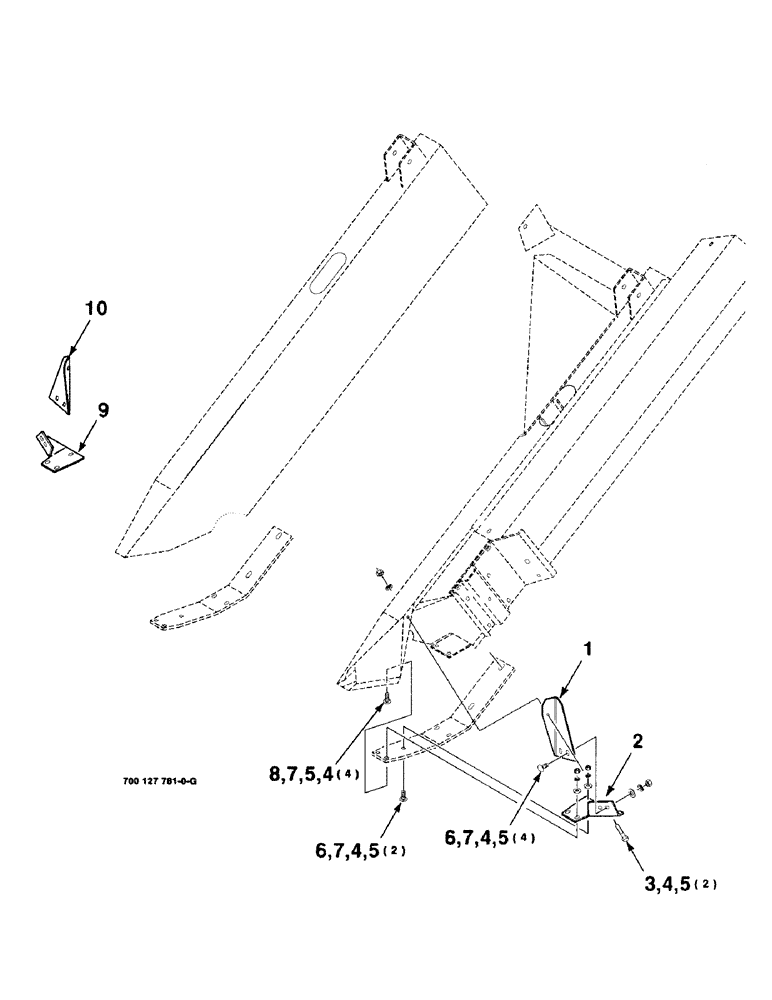

Схема запчастей Case IH 8820 - (9-14) - SICKLE HEAD GUARD KIT, 700127781 SICKLE HEAD GUARD KIT COMPLETE (09) - CHASSIS
10
6
4
5
7
4
5
3
1
4
4
9
7
8
6
2
7
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700127781

GUARD

SICKLE HEAD GUARD KIT COMPLETE

1шт.

1

700127773

GUSSET

- shoe, left

1шт.

2

700127771

SHOE

- left

1шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

4

492-11038

LOCK WASHER,3/8"

12шт.

5

425-106

NUT,3/8"-16, Cl 5

12шт.

6

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

10шт.

8

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

9

700127772

SHOE

- right

1шт.

10

700127774

GUSSET

- shoe, right

1шт.
