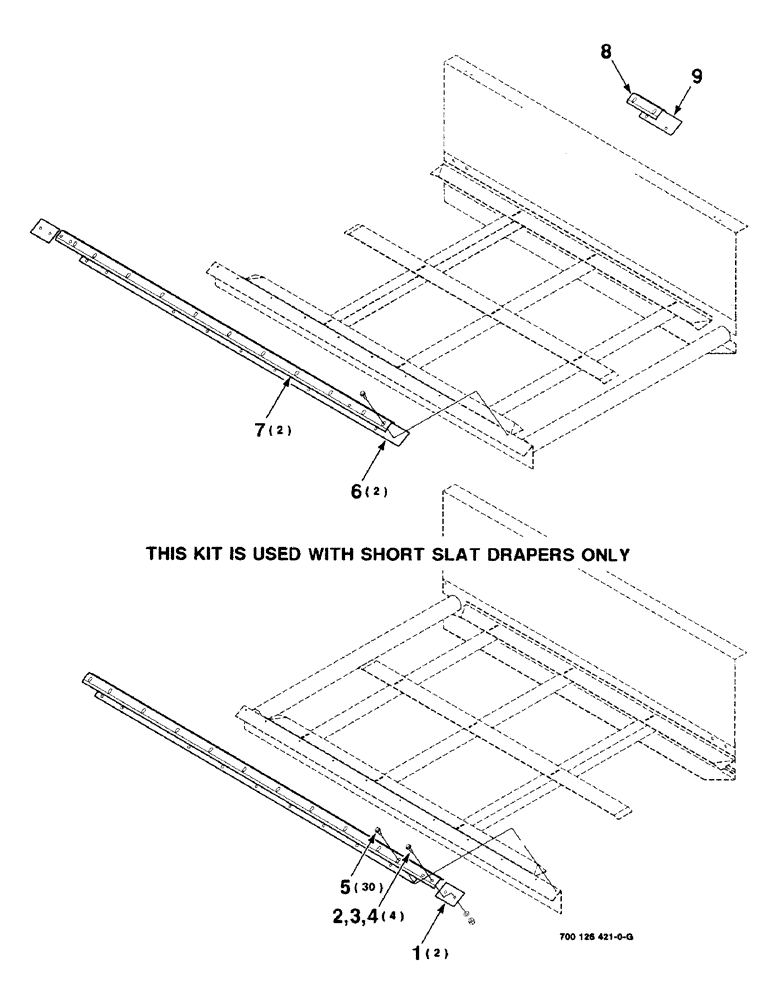

Запчасти Case IH 8820 (9-06) - DRAPER GUARD KIT, SHORT SLAT DRAPERS ONLY, 700126421 DRAPER GUARD KIT COMPLETE (09) - CHASSIS

700126421

GUARD

KIT - draper guard, complete

1шт.

1

700126406

GUARD

- rubber

2шт.

2

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1/4-20 X 3/4 HFSS

4шт.

3

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

4шт.

4

1703354

NUT

1/4-20 HFTLN GR/G

4шт.

5

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

30шт.

6

700126402

GUARD

- rubber

2шт.

7

700126403

RETAINER

2шт.

8

700126405

GUARD

RETAINER - mini draper

1шт.

9

700126404

GUARD

- rubber, mini draper

1шт.
