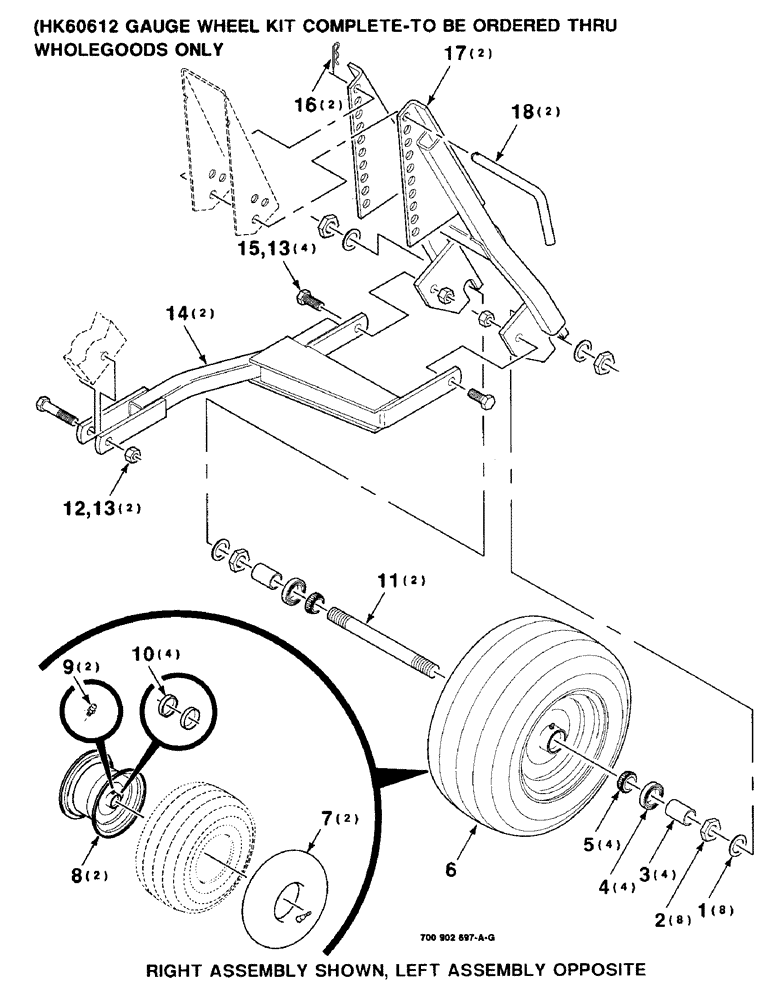

Запчасти Case IH 8820 (9-04) - GAUGE WHEEL KIT, HK60612 GAUGE WHEEL KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS

HK60612

LAND WHEEL

GAUGE WHEEL KIT COMPLETE

1шт.

1

195-2103

WASHER,1 1/16" x 1 1/2" x .065"

1 X 18 GAUGE NRMB

8шт.

2

425-1516

JAM NUT,Jam, 1"-14, G5

1-14 HEX JAM NUT

8шт.

3

700100044

SPACER

4шт.

4

744888

SEAL

- grease

4шт.

5

D29266

ROLLER BEARING,1" ID x 0.58"

BEARING - cone

4шт.

6

700710057

TYRE/TIRE

WHEEL AND TIRE ASSEMBLY (INCLUDES ITEMS 7 THRU 11)

1шт.

item #6..tire-700700028...size TIRE 16 X 6.50-8 4 PLY TYPE RIB II. DICO TERRA-TIRE. cc 9/97

1шт.

7

700710212

AIR TUBE

INNER TUBE

2шт.

8

700710055

RIM

WHEEL ASSEMBLY (INCLUDES ITEMS 9 & 10)

2шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

10

572564R1

BEARING CUP

CUP - bearing

4шт.

11

700100043

AXLE

2шт.

12

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

13

230-42110

LOCK NUT,5/8"-11, GA

5/8-11 HCLN

6шт.

14

700126414

SUPPORT

2шт.

15

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

16

T54573

PIN

.120 WIRE HAIRPIN COTTER

2шт.

17

700126407

SUPPORT

WA

2шт.

18

700116382

PIN

2шт.
