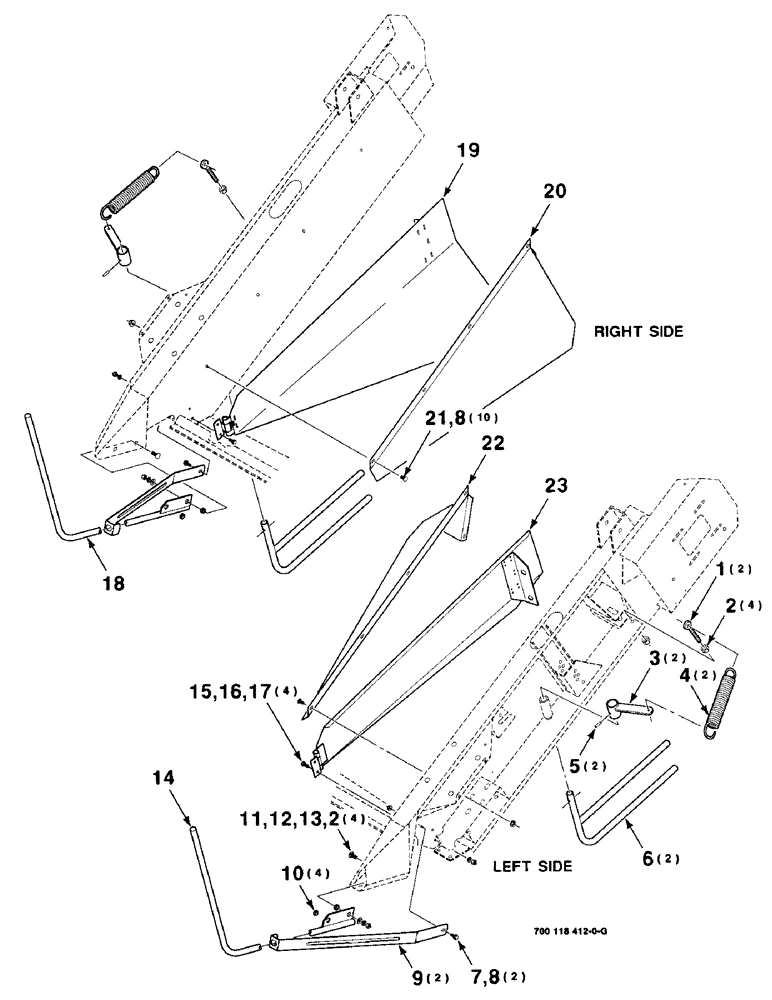

Запчасти Case IH 8820 (7-10) - DIVIDER AND DEFLECTOR ASSEMBLIES, 21 FOOT (09) - CHASSIS

1

443556

FITTING,3/8" - 16 x 2", Full Thd

3/8-16 EYEBOLT

2шт.

2

425-106

NUT,3/8"-16, Cl 5

8шт.

3

700116349

ARM

- deflector

2шт.

4

58859

SPRING

- extension

2шт.

5

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

6

700116346

TUBE

- rocker

2шт.

7

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

12шт.

9

700115409

DEFLECTOR

DIVIDER - brace

2шт.

10

6270854

SPACER

4шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

12

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

13

492-11038

LOCK WASHER,3/8"

4шт.

14

700116807

ROD

- divider, left

1шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

425-105

NUT,5/16"-18, G5

4шт.

18

700116808

ROD

- divider, right

1шт.

19

700118413

DEFLECTOR

- right

1шт.

20

700116354

DEFLECTOR

- right

1шт.

21

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

10шт.

22

700116353

DEFLECTOR

- left

1шт.

23

700116355

DEFLECTOR

- left

1шт.
