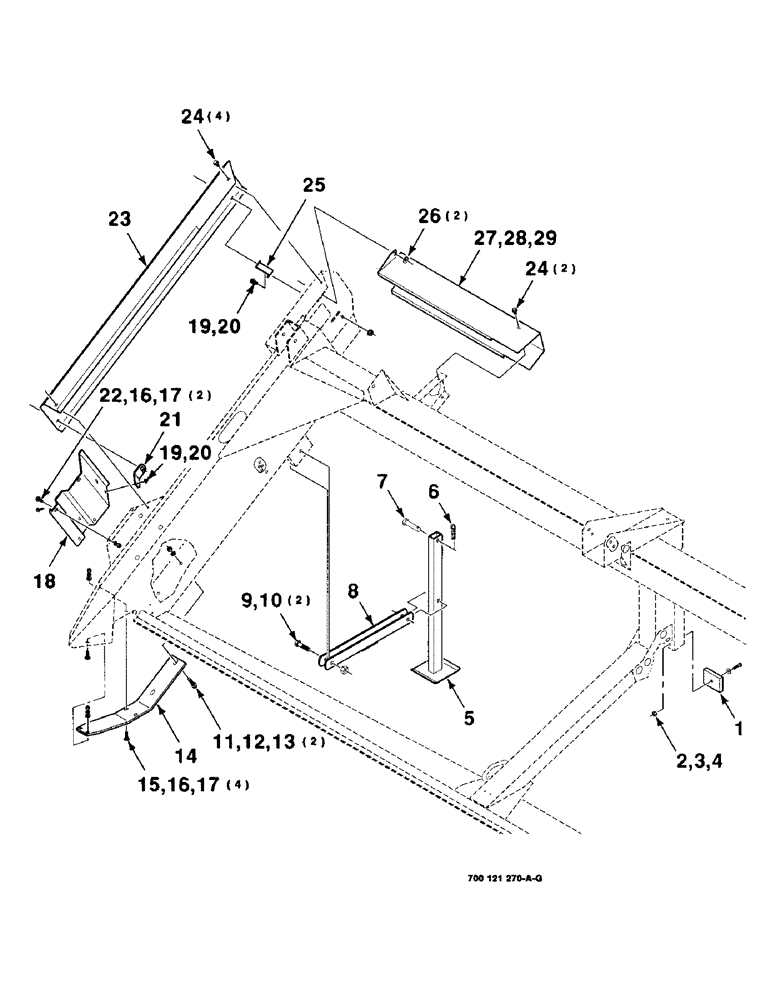

Запчасти Case IH 8820 (7-08) - SHIELDS AND STAND ASSEMBLY, RIGHT (09) - CHASSIS

1

700707584

PAD

- neoprene

1шт.

2

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16-18 X 1-1/4 C

1шт.

3

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

1шт.

4

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

1шт.

5

700118506

STAND

1шт.

6

T54573

PIN

.125 X 2-1/2 HAIRPIN COTTER

1шт.

7

63495

CLIP

5/8 X 2-1/2 CLEVIS PIN

1шт.

8

700118508

STRAP

- brace

1шт.

9

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8-11 X 2-3/4 C

2шт.

10

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

2шт.

11

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

14

700116801

SKID/SHOE

SHOE - skid

1шт.

15

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

16

492-11038

LOCK WASHER,3/8"

6шт.

17

425-106

NUT,3/8"-16, Cl 5

6шт.

18

700116813

PLATE

- right

1шт.

19

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

21

700116815

SUPPORT

ANGLE

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

23

700116797

SHIELD

- swaybar, right

1шт.

24

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

25

700116816

SUPPORT

- brace

1шт.

26

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

27

700118388

SHIELD

- rear, right (21 foot)

1шт.

28

700116972

SHIELD

- rear, right (25 foot)

1шт.

29

700116795

SHIELD

- rear, right (30 foot)

1шт.
